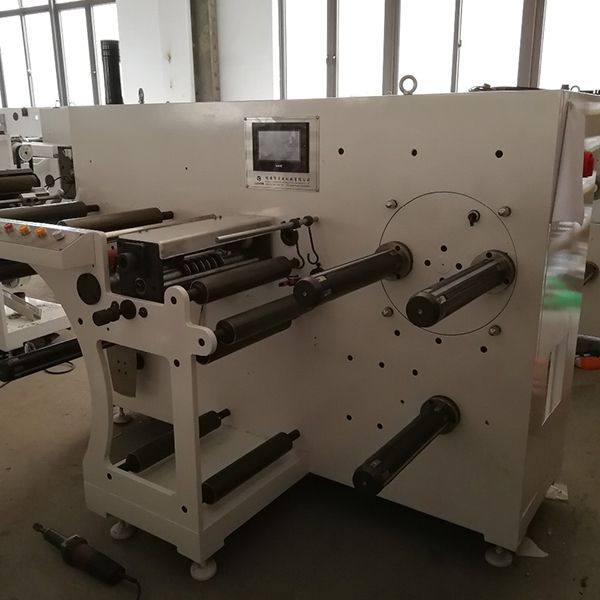

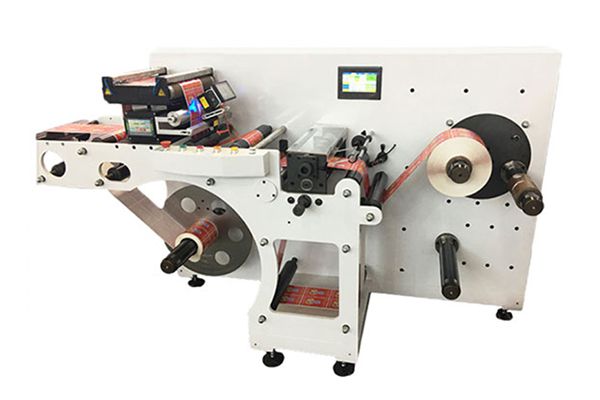

Automatic Slitter Rewinder, FQ370/480/550

Automatic Slitter Rewinder, FQ370/480/550
Request a Quote

With the continuous changes in the market, the low-speed slitting and rewinding machine gradually cannot meet the needs of customers. The high-speed slitting and rewinding machine has greatly improved the work efficiency, so it is widely used in the market.

Whole machine is servo driver controll with panasonic brand in unwinding -feeding -slitting-rewinding, BST web guide, 10 pcs circular blades. the option device is shear knife and turret rewinder in semi automatic and full automatic.

Request a Quote

ZONTEN high speed slitting rewinding machine is fully controlled by a servo driver, which has a speed of 350 m/min. It’s around 3 times higher than old models. The slitter rewinder features Panasonic servo driver control in unwinding, feeding, slitting, and rewinding, and comes with BST web guiding system, 10 pcs circular blades (optional shear blade), and turret rewinder in semi and fully automatic working modes.

This is a type of very mature converting machinery, which has greatly improved the production capacity of customers. If you have a lot of low-speed slitter rewinder, please try the following high speed slitting rewinding machine.

Specifications
Model 370 480 550
Speed 350m/min 350m/min 350m/min
Max. unwinding width 370mm 480mm 550mm
Max. unwinding diameter 800mm 800mm 800mm
Max. rewinding diameter (upper) 450mm 450mm 450mm
Max. rewinding diameter (lower) 700mm 700mm 700mm
Razor knife Optional Optional Optional
Circular knife(upper/lower) 6 sets 6 sets 6 sets
Slitting precision ±0.1mm ±0.1mm ±0.1mm
Total power 9kW 12kW 15kW
Dimensions 2200x1350x1350mm 2200x1460x1350mm 2200x1530x1350mm
Machine weight (LxWxH) 1300kg 1500kg 1800kg
Details of Automatic Slitter and Rewinder

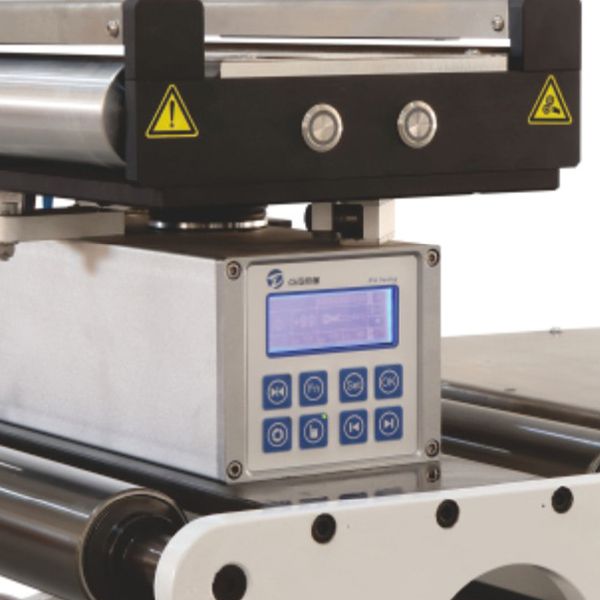

    1. Web guide
    2. Web guide
      Imported web guiding system for precise and stable web guide

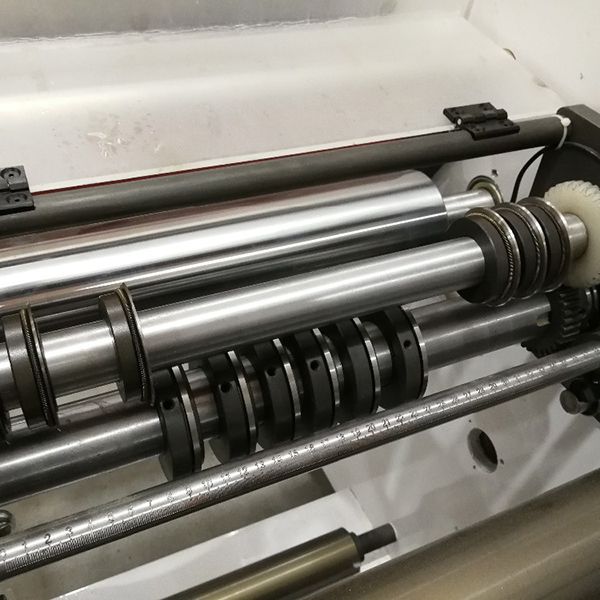

    1. Slitting unit
    2. Slitting unit
      Eccentric self-locking slitting system, optional razor blades or circular knives.

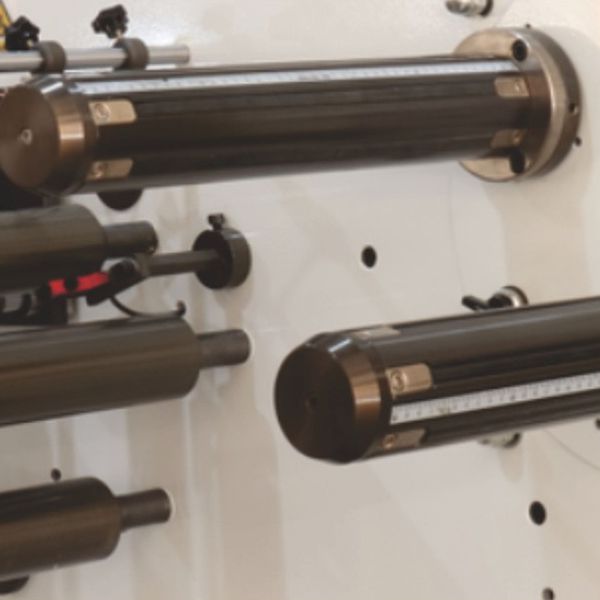

    1. Turret rewinding unit
    2. Turret rewinding unit
      It’s easy to change the finish rolls, saving you time. The air shaft can be available with different kinds of rewinding cores. The automatically inflatable air shaft comes with on/off switch.

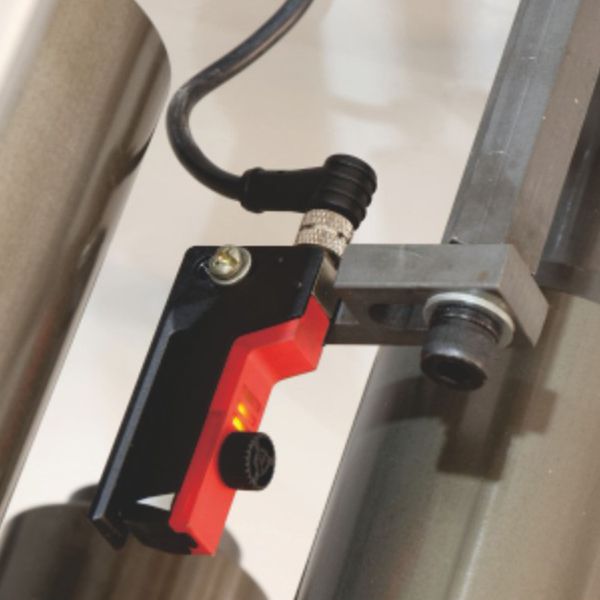

    1. Counter sensor
    2. Counter sensor from an internationally well-known brand
    1. Touch Screen
    2. Touch screen realizes easy operation and parameter setting and adjustment.

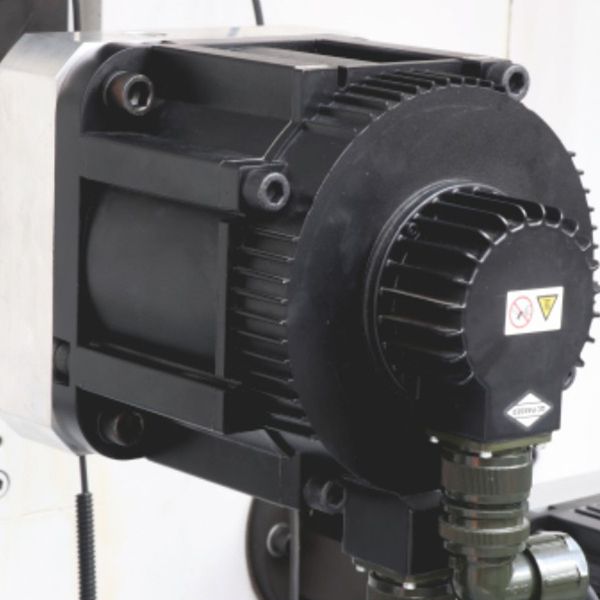

    1. Servo drive from a Japanese brand
    2. Servo drive from a Japanese brand
