Automatic Slitter Rewinder, FQ-1300

Automatic Slitter Rewinder, FQ-1300
Request a Quote

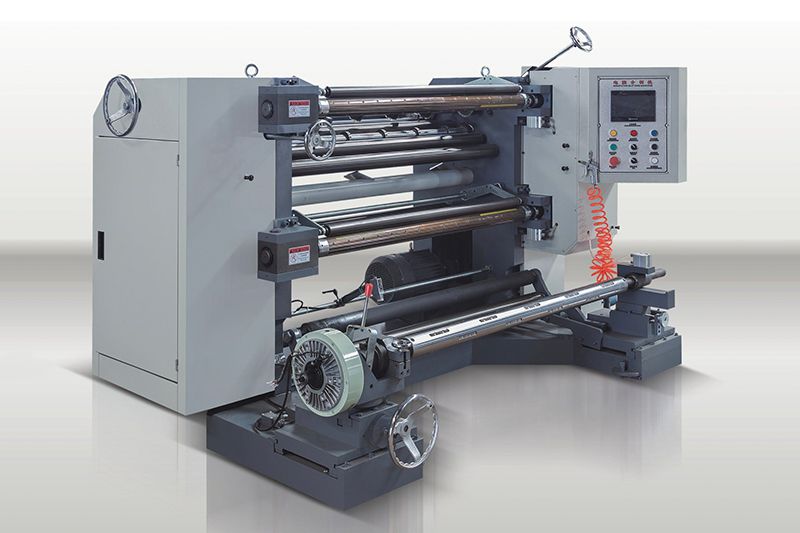

FQ-1300 is a vertical film slitting rewinding machine, which is mainly used for slitting large rolls of raw materials into small rolls of wide materials. As the whole converting equipment is controlled by a magnetic powder tension, the film slitting machine has a maximum speed of 150 m/min and a slitting accuracy of 0.5 mm. The operation of the slitting machine is controlled by PLC, and its working parameters are displayed on the touch screen, which is simple and convenient to operate.

Request a Quote

Because of the competitive pricing, the slitting machine is favored by foreign small-scale printing customers. Customers can slit raw materials to meet individual needs and save money on materials.

Specifications
Model FQ-1300
Max. web width 1350mm
Max. parent roll diameter 600mm
Max. rewinding diameter 400mm
Max. unwinding speed 150m/min
Unwinding shaft type 3inch air expanding shaft
Machine weight 1000kg
Voltage 3-phase, 380V, 50hz
Rewinding shaft diameter 3inch
Overall dimensions 2050x1600x1500mm
Details of Automatic Slitter Rewinder
    1. Automatic Slitter Rewinder, FQ-1300

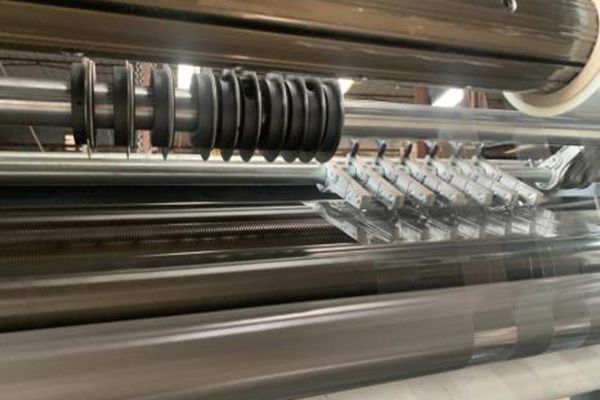

    2. Equipped with circular knife and shear knife, suitable for slitting film and adhesive material.
    1. Automatic Slitter Rewinder, FQ-1300

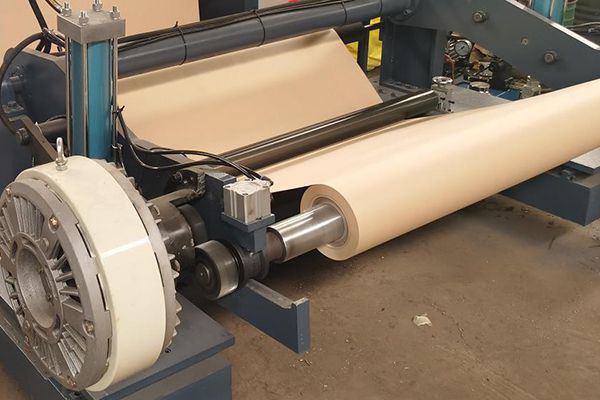

    2. Unwinding with 10kg magnetic brake control, hydraulically controlled lifting.
    1. Automatic Slitter Rewinder, FQ-1300

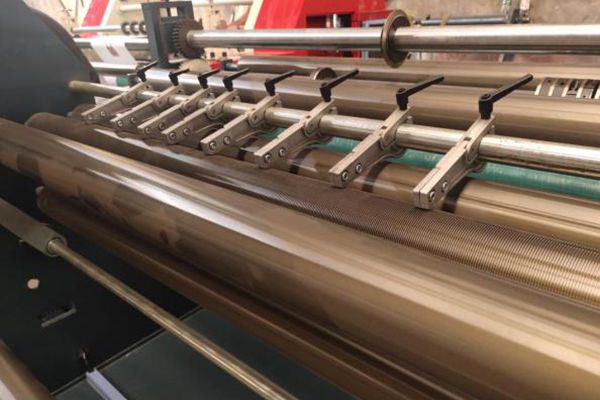

    2. Special supporting cylinder for slitting film
    1. Automatic Slitter Rewinder, FQ-1300

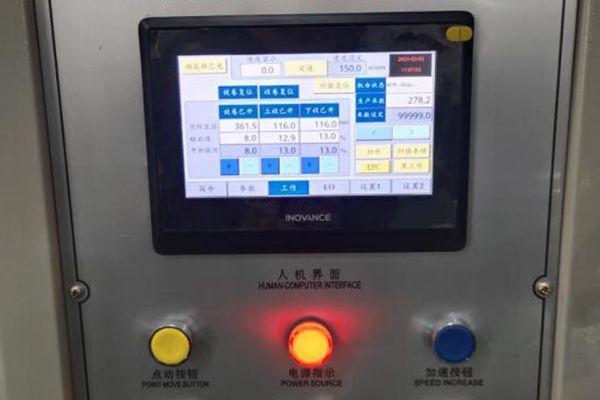

    2. PLC & touch screen for remote machine running.
    1. Automatic Slitter Rewinder, FQ-1300

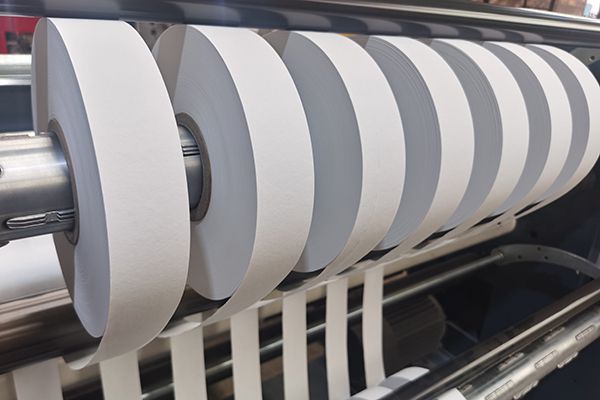

    2. Supports more rolls rewind
