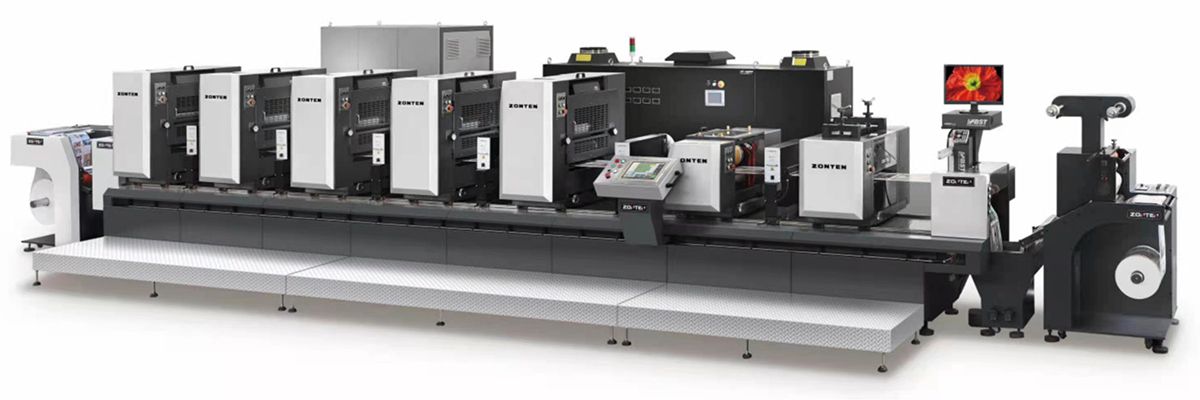

6 Color Offset Printing Machine, ZTJ-520

6 Color Offset Printing Machine, ZTJ-520
Request a Quote

ZTJ-520 6 color offset printing machine is made based on the structure of Heidelberg SM52, a true 1:1 depth reduction, and realizes the transition from a medium-format sheet-fed machine to a reel machine, providing more choices for customers in the packaging field.

Compared with the single-sheet printing machine, 6 color offset printing machine can realize the printing of short batch products, and can provide more process options, including hot stamping/vanishing/die cutting, and the process can be completed on one machine, thereby reducing equipment expenditures.

At present, 6 color offset printing machine is widely used in all kinds of carton/paper cup printing. The wider machine provides more benefits for the self-adhesive materials.

Specifications
Model ZTJ-520
Max. Web Width 520mm
Max. Printing Width 510mm
Printing Repeat 150~380mm
Thickness of Substrate 0.1~0.35mm
Machine Speed 50~160rpm
Max. Unwind Diameter 1000mm
Max. Rewind Diameter 1000mm
Air Supply Pressure 10kg/cm²
Total Power 60kW/6 colors (excluding UV)
UV Capacity 7kW/color
Power 3-phase, 380V
Overall Dimensions (LxWx H) 11880x2110x1600mm
Machine Weight About 15 ton
Features
  • Using the most advanced inking system with 23 ink rollers to guarantee the quality of your print jobs
  • Four large diameter ink rollers for stable ink delivery
  • Five pieces of water roller with alcohol dampening system can quickly achieve ink/water balance and less water requirement
  • Large ink roller diameter from 46 to 74.1mm
  • Double side ink route
  • Automatic ink roller washing system
Details of Offset Printing Machine

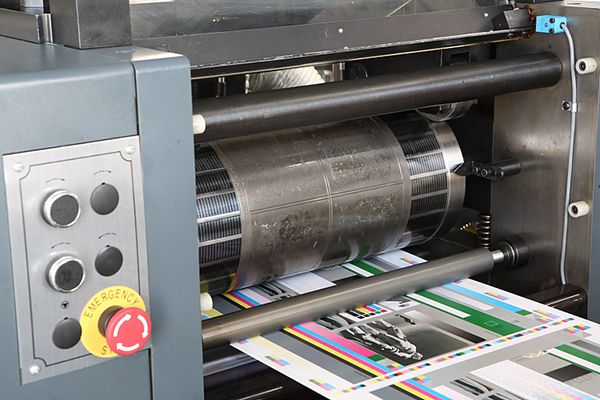

    1. Flexo UV varnishing unit
    2. Flexo UV varnishing unit

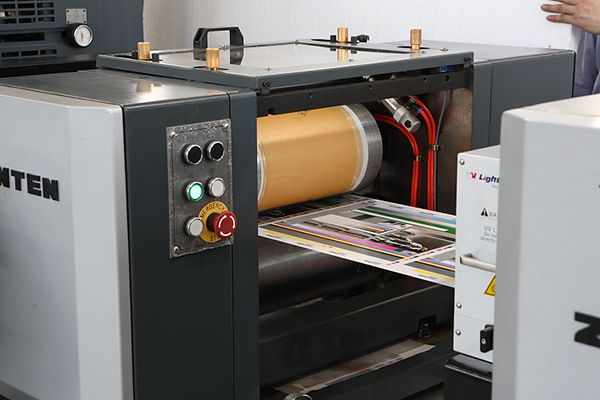

    1. Rotary die cutting unit
    2. Rotary die cutting unit

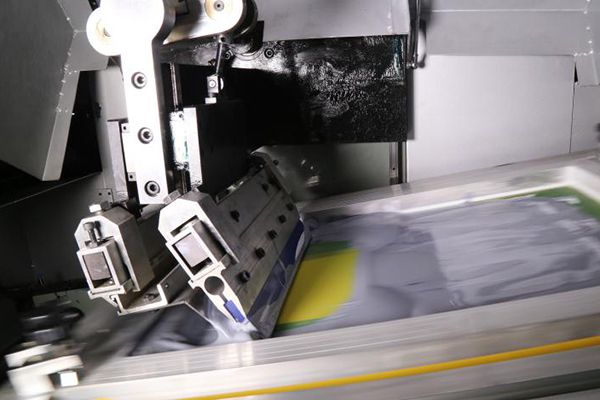

    1. Silk-screen printing unit
    2. Silk-screen printing unit

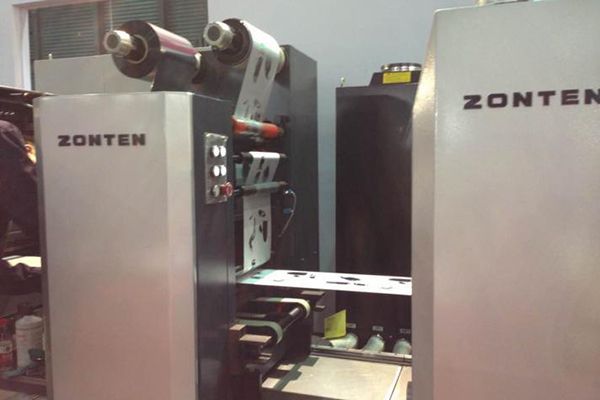

    1. Cold foil stamping unit
    2. Cold foil stamping unit

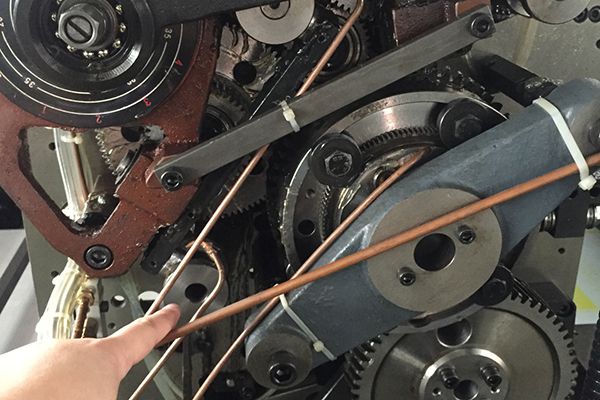

    1. The specially designed roller guarantees the color consistency, when speeding up or slowing down your print job.
    2. The specially designed roller guarantees the color consistency, when speeding up or slowing down your print job.

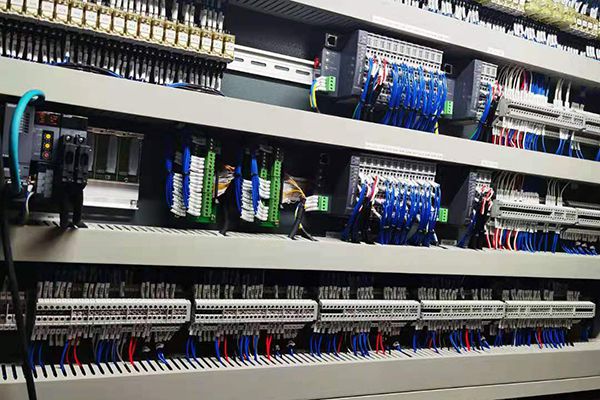

    1. Electrical control box in compliance with European standards
    2. Electrical control box in compliance with European standards
