Flatbed Die Cutting Machine, MQ-350

Flatbed Die Cutting Machine, MQ-350
Request a Quote

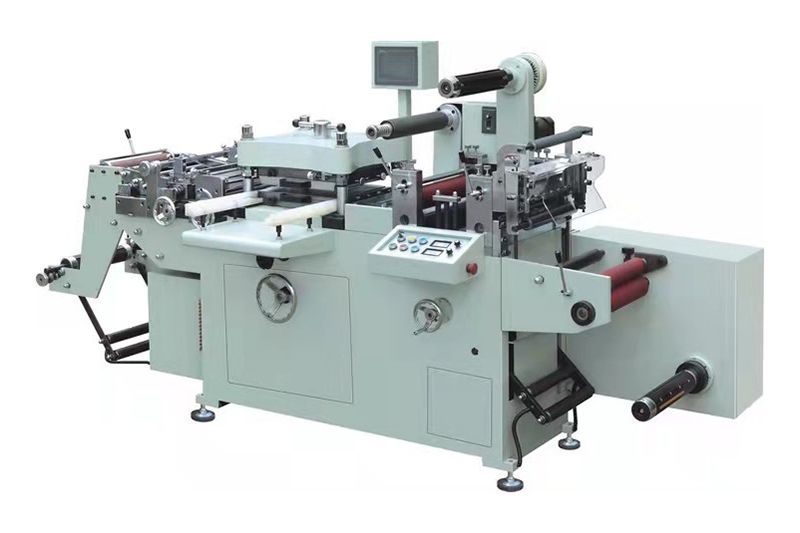

MQ-350 flat bed die cutting machine is a high-precision die cutter with flat bed. The material feeding and positioning is controlled by a servo system.

The flatbed die cutting machine combined with functions including laminating, die cutting, waste discharge, slitting and rewinding. It is very suitable for die cutting of various self-adhesive labels and laser labels.

Request a Quote

At present, the flat bed die cutting machine can be configured to realize a die cutting speed of 200 times/minute and 300 times/minute to choose from. The converted meter can be 30 meters/45 meters per minute for option. In the future, the speed will be changed without changing the machine structure. The die cutting speed is possible to reach up to 60 meters per minute.

Currently, the label die cutting machine can handle materials with the maximum width of 320mm, 420mm and 520mm respectively. If you need flat bed die cutting machine, please don't hesitate to contact with us.

Specifications
Model MQ- 350
Die cutting speed 20-220cycle/min
Max. unwinding diameter 500mm
Max. web width 320mm
Max. die cutting width 300mm
Max. die cutting length 290mm
Positioning accuracy +0.1mm
Total power 2.7kW
Voltage 220V+5%
Overall dimensions (LxWxH) 2800x1100x1600mm
Machine weight about 1500kg
Details of Flatbed Die Cutting Machine

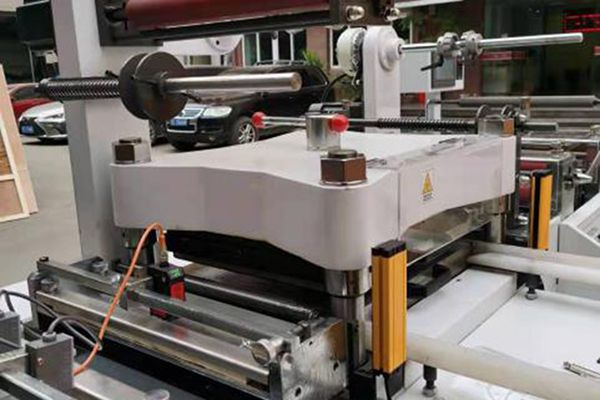

    1. Hot stamping unit
    2. Hot stamping unit

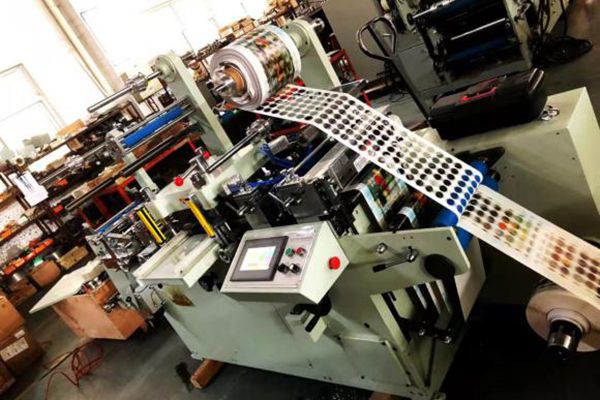

    1. Waste collection system
    2. Waste collection system

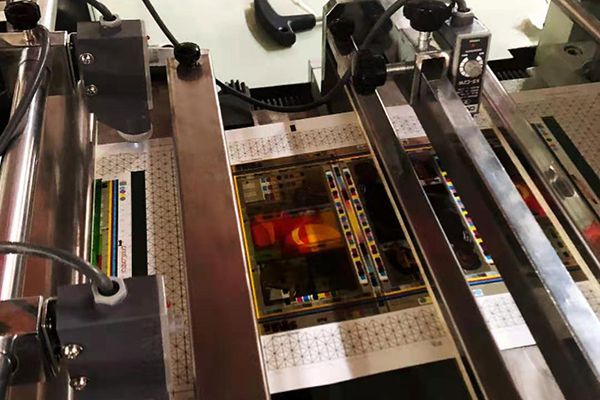

    1. Two web guide sensors from Taiwan, one mark sensor from Italy
    2. Two web guide sensors from Taiwan, one mark sensor from Italy

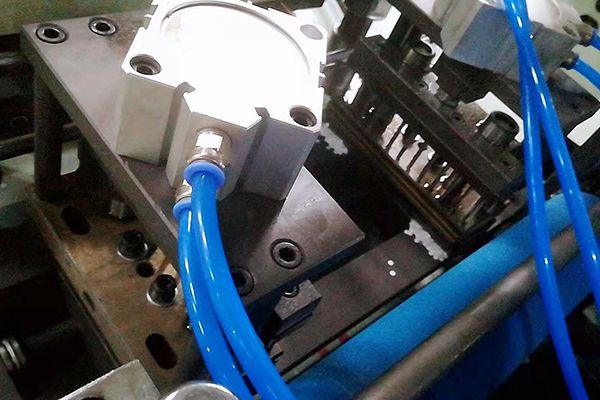

    1. Hole punching unit
    2. Hole punching unit

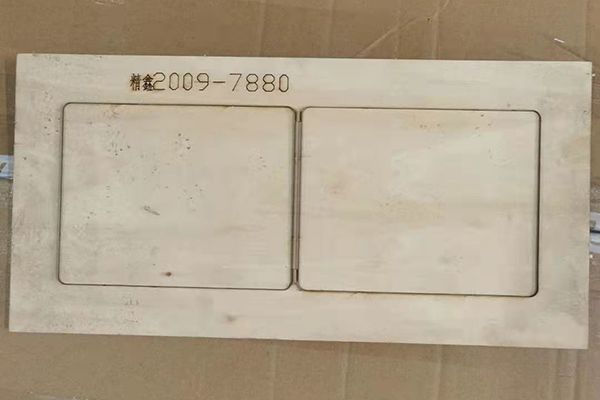

    1. Die cut wooden mold
    2. Die cut wooden mold

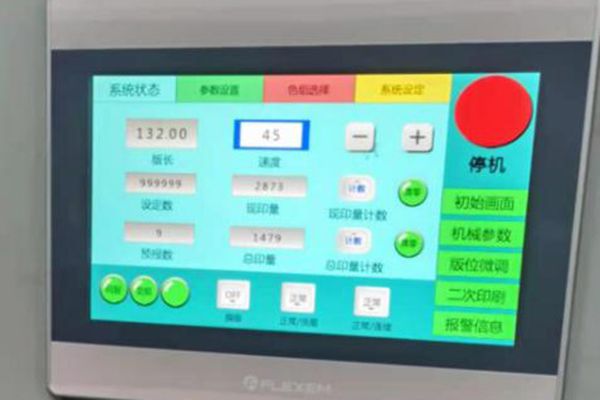

    1. Touch screen with PLC control system for real-time monitoring and easy operation
    2. Touch screen with PLC control system for real-time monitoring and easy operation
