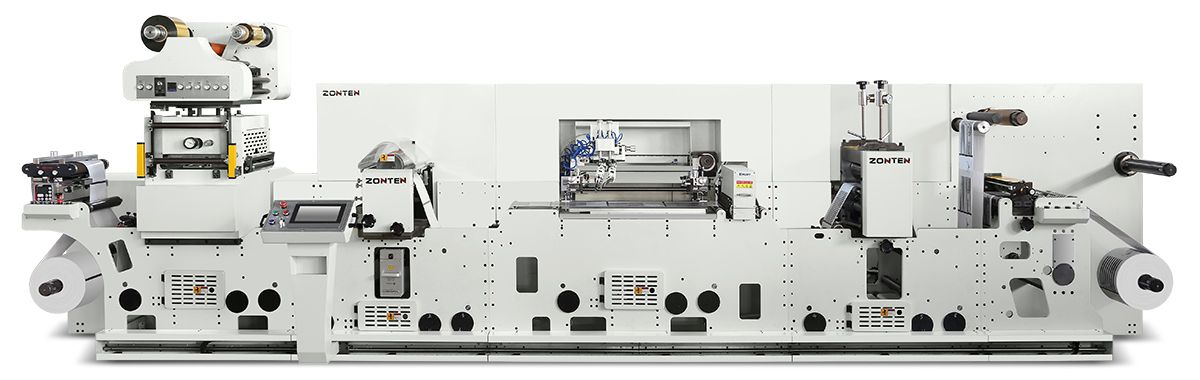

The ZMQ-370 is a semi rotary die-cutting machine independently developed by ZONTEN. This semi rotary die-cutting machine is designed to solve the problems of in-mold labels in label printing companies that cannot be die-cut through the use of traditional equipment, which has obtained a number of patents. The semi rotary die cutter integrates the fully rotary die-cutting method of the in-mold label and the intermittent die-cutting method of self-adhesive. The two working modes can be interchanged at will, and the intermittent die-cutting can also be used for small batches of in-mold labels (IML-labels). It solves the confusion that the in-mold label project of the printing plant is difficult to start.

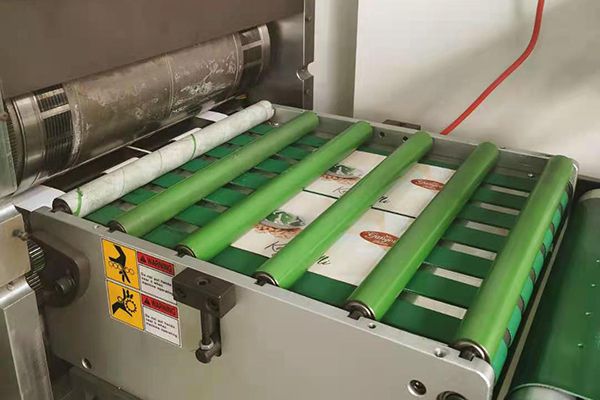

The semi rotary die cutting machine is equipped with 152Z magnetic roller as standard. In the intermittent state, the die-cutting size is 350*400mm and the speed is 50 m/min. Under the fully rotary state, the die-cutting size is 350*482.6mm and the speed is 100 m/min. In addition, it can also be equipped with film slitting or roll to sheet device.

Due to the popularity of digital printing, the ZMQ-370 semi rotary die cutting machine gradually replaced the traditional flat die cutting machine and was favored by customers.

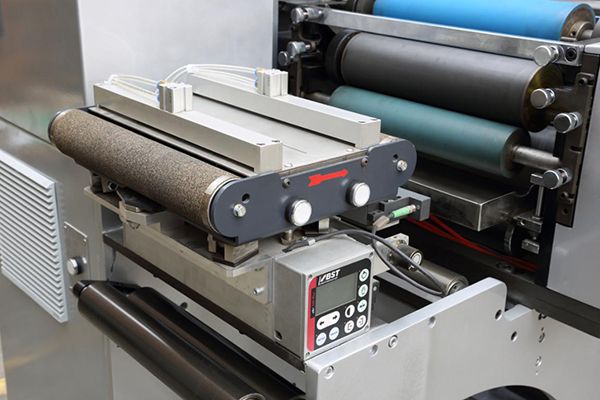

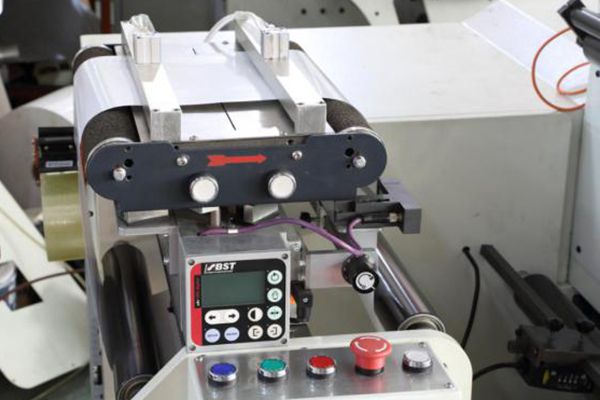

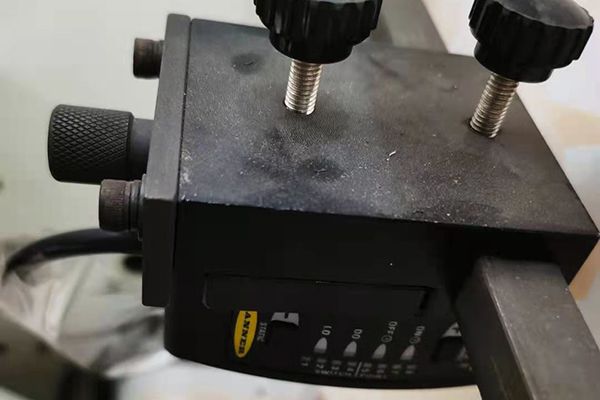

• Unwinding with closed-loop tension control, BST web guiding system with ultrasonic edge guide sensor

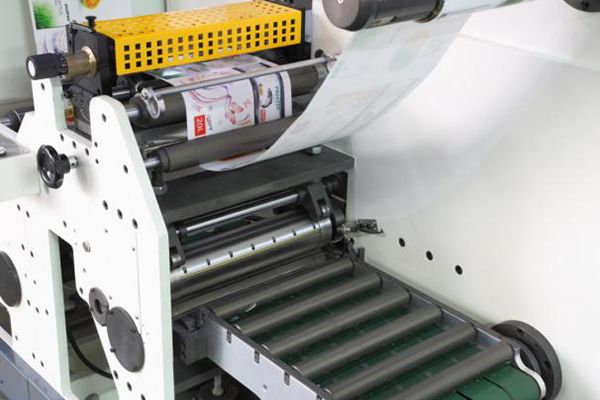

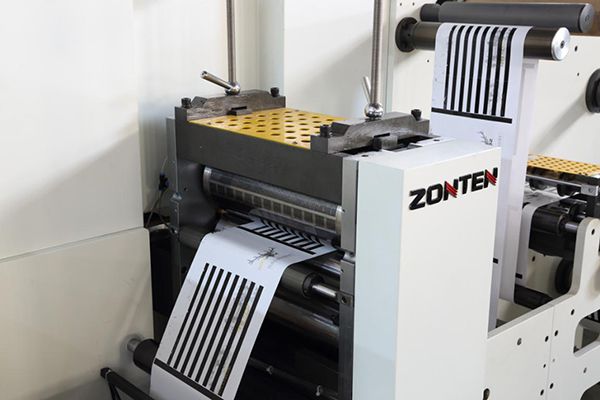

• Die cutting station with independent Panasonic servo driver control, magnetic cylinder size in 152 Z, can run in semi rotary and fully rotary states.

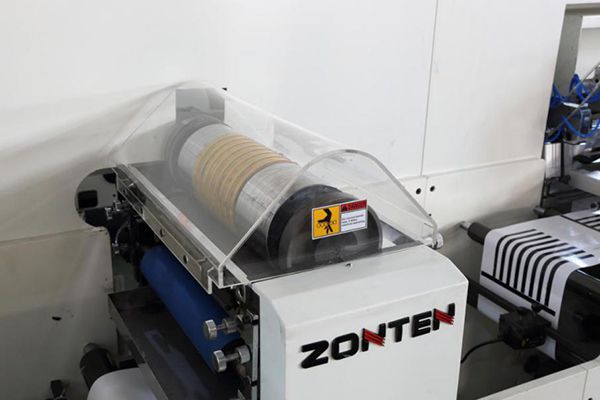

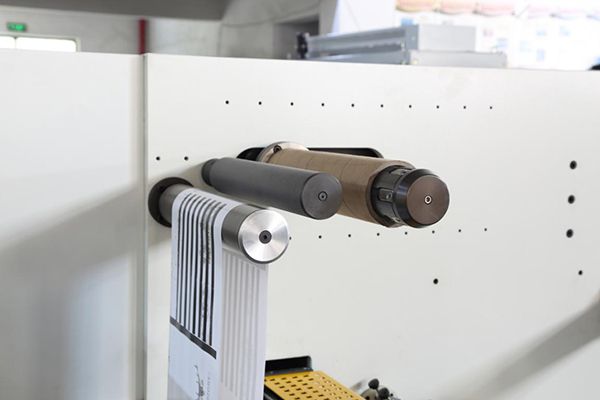

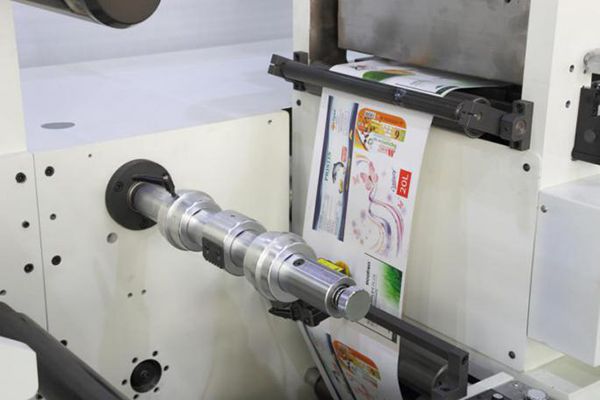

• Slitting device with two rewinder shaft
• Combining semi rotary flexo unit can achieve flexo UV varnish + semi rotary die cutting + slitting at one time.

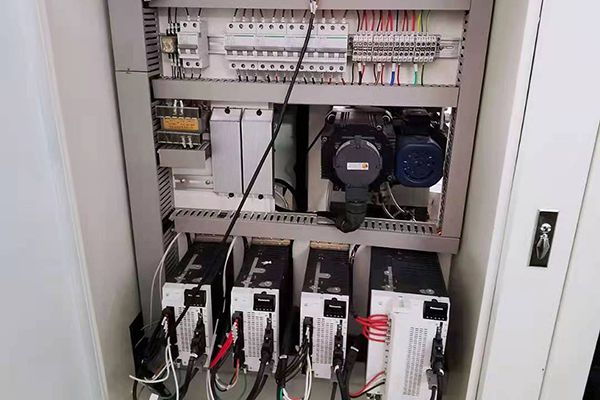

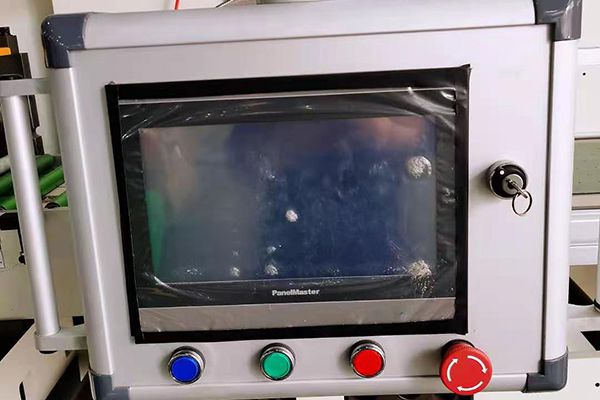

• Independent electrical box control with Trio PLC, moveable touch screen control.
• Semi rotary die cutting machine supports remote control. Therefore, we can easily solve any software issues with laptop.
