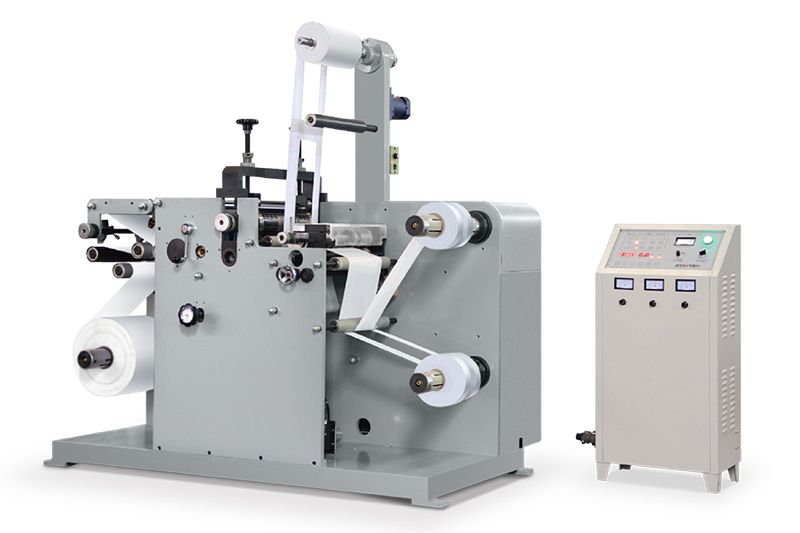

Rotary Label Die Cutting Machine, FQ-330R/450R

Rotary Label Die Cutting Machine, FQ-330R/450R
Request a Quote

FQ-330R/450R rotary label die cutting machine is a die cutter specially designed for blank labels. This machine is suitable for die cutting and slitting of blank self-adhesive labels. The operations from die cutting to slitting and rewinding can be performed at one time, providing high production efficiency. The rotary label die cutting machine has the functions of automatic meter counting, length and quantity setting, and automatic shutdown.

Request a Quote

The FQ-330R and FQ-450R rotary label die cutting machine can handle materials with the maximum width of 330mm and 450mm respectively. The standard model comes with 1 slitting unit and 1 die cutting unit. In order to meet more complex process requirements, two die-cutting functions can be configured. The rewinding unit is designed with reverse function to meet the requirements of the small paper tube diameter of the supermarket labels.

At present, the company is developing a high-speed rotary die cutting machine controlled by private servers, with a speed of up to 120 meters per minute. If you are interested in our label die cutting machine, welcome to consult us!

Specifications
Model FQ-330 R/450R
Slitting speed 75m/min
Die-cutting speed 60m/min
Die cutting repeat length 206.375-476.25mm
(65-150)
Max web width 320mm
Max unwinding diameter 500mm
Max rewinding diameter 450mm
Overall diameters(L×W× H ) 1650x1000x1700mm
Machine weight about 650kg
Details of Rotary Label Die Cutting Machine

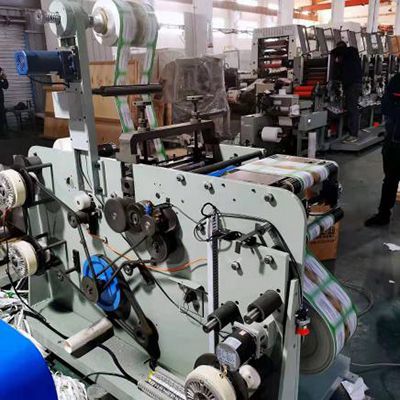

    1. Rotary die cutting station
    2. Rotary die cutting station

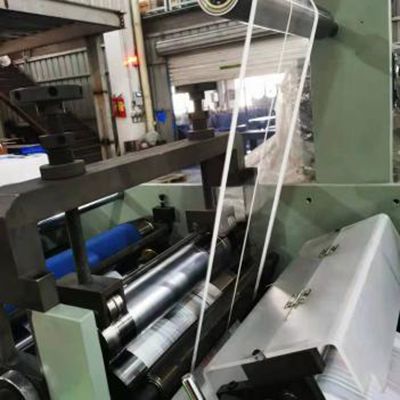

    1. Slitting unit
    2. Slitting unit

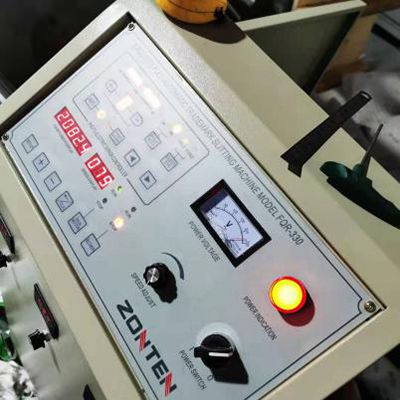

    1. Magnetic brake & clutch control
    2. Magnetic brake & clutch control

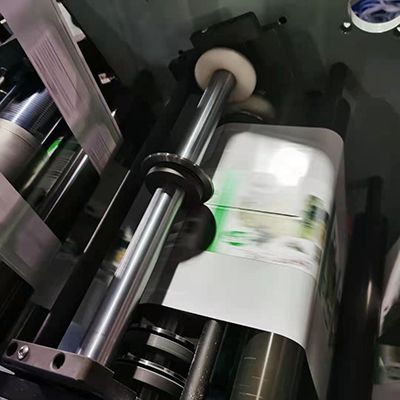

    1. Turret rewinder with 1.5 inch shaft
    2. Turret rewinder with 1.5 inch shaft

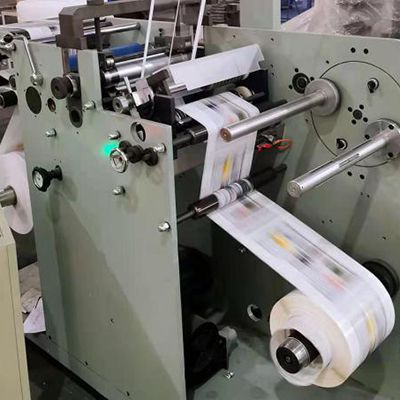

    1. Turret rewinder with 1.5inch shaft
    2. Turret rewinder with 1.5inch shaft

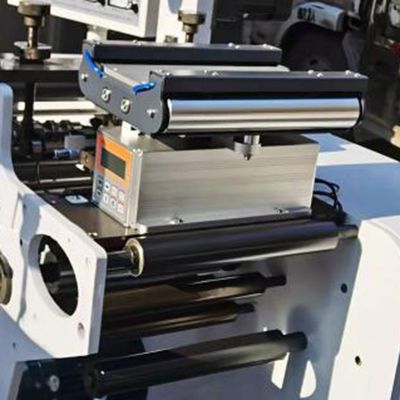

    1. Option: Web guide control instead of sensor
    2. Option: Web guide control instead of sensor
