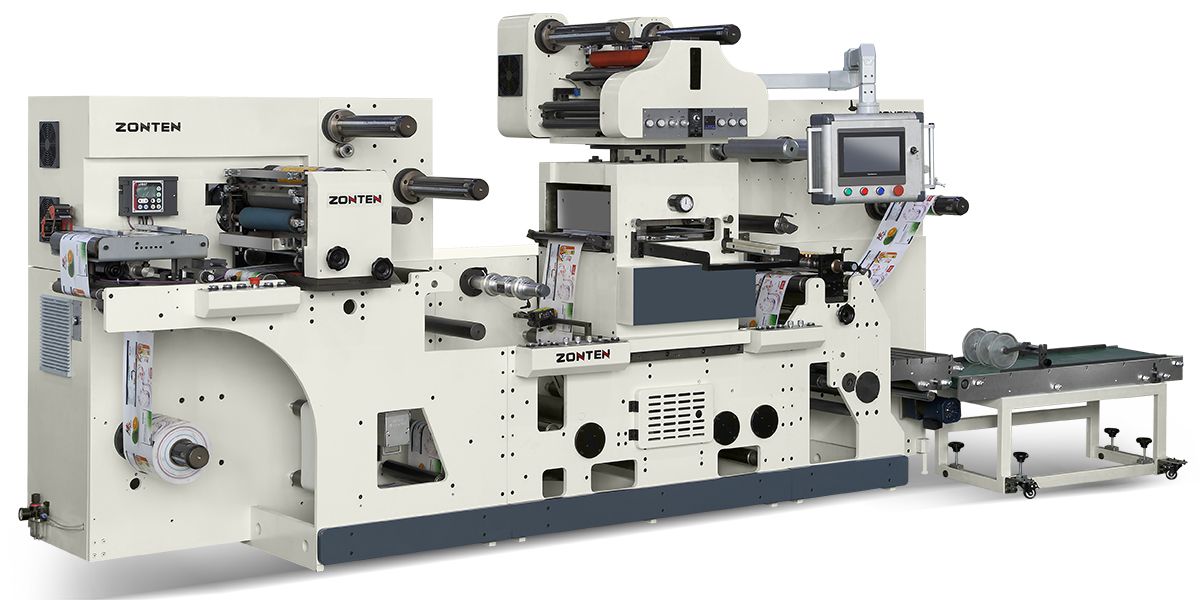

Flatbed Die Cutting Machine, Dragon-330

Flatbed Die Cutting Machine, Dragon-330
Request a Quote

ZONTEN Machinery independently researched and developed patented die-cutting machines. With the label market price moving towards the era of meager profit and higher and higher labor costs, the flat bed high speed die cutting machine was developed. This die cutter adopts a dancer paper feeding system with a maximum speed of 120m/min (400 times/min). Except for the intermittent movement of the paper feeding in the die-cutting part, the paper is fed at a constant speed.

Request a Quote

The Dragon-330 flat bed high speed die cutting machine is also equipped with a hot stamping unit fully controlled by a servo driver, and the stamping unit is electrically heated. Servo-controlled intermittent foil tape rewinding and unwinding can ensure die-cutting speed of 120 m/min, and support 90-degree rapid rotation. The foil tape rewinding and unwinding unit adopts a differential air shaft with slipping friction, which can feed multiple foil tapes with different roll diameters on a single shaft at the same time, and can hold a maximum of 3000m foil tape. This greatly improves efficiency. More and more customers use flat bed high speed die cutting machine to replace the previous low speed die cutter.

Video Show
Flatbed Die Cutting Machine, Dragon-330
Flatbed Die Cutting Machine, Dragon-330
Specifications
Model Dragon -330
Max. web width 330mm
Max. unwinding diameter 700mm
Max. rewinding diameter 700mm
Registration Sensor
Die cutting & hot stamping size 320*350mm
Die cutting speed 400rpm/min, 120m/minute
Air supply 0.4-0.6pa
Overall dimensions 5650x1510x1820mm
Machine weight 8000kg
Features

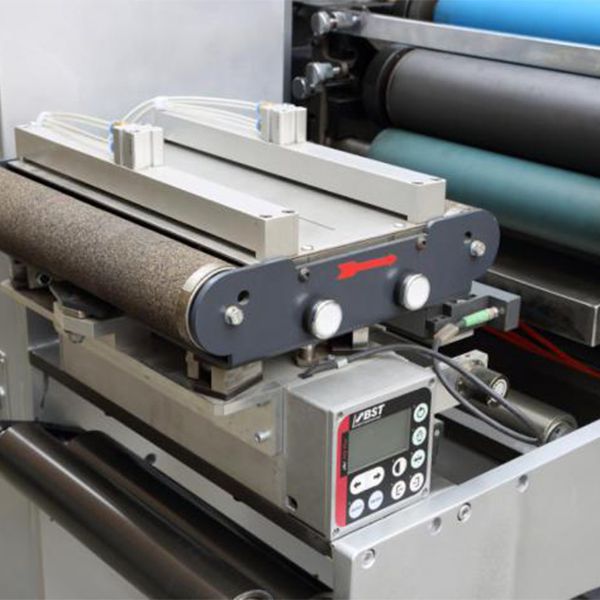

    1. BST web guiding system
    2. BST web guiding system
      Unwinder with closed-loop tension control, electronic web guide with ultrasonic edge guide sensor

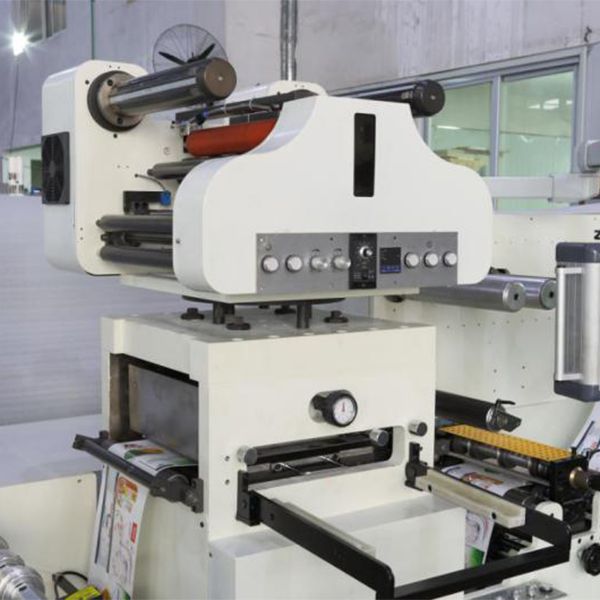

    1. Hot stamping unit
    2. Hot stamping unit
      Horizontal/vertical 90° rotating and adjustable stamping. The sliding axis controls the material, and multiple rolls of material can be stamped at the same time.
    1. Snowball waste collection
    2. Snowball waste collection
      Very good solution for handling defective labels after die cutting. Die cutting operation won’t stop during waste collection process.
    1. Flatbed Die Cutting Machine, Dragon-330

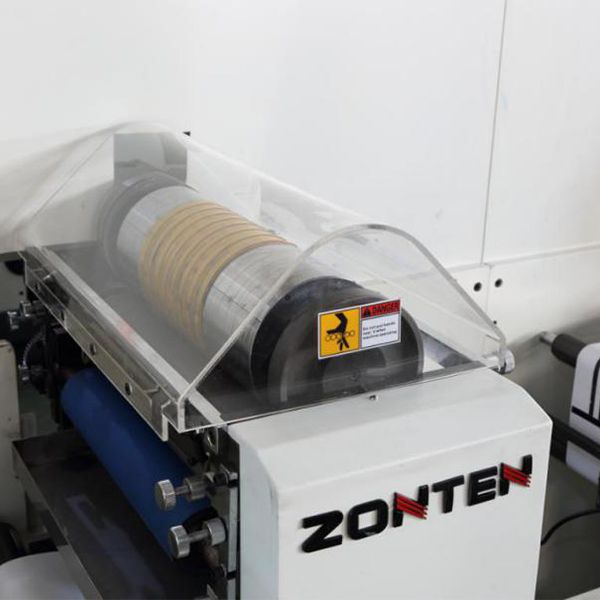

    2. Slitting unit designed with double rewinder, and ten circular knives with minimum slit width of 17mm.
    1. Flatbed Die Cutting Machine, Dragon-330

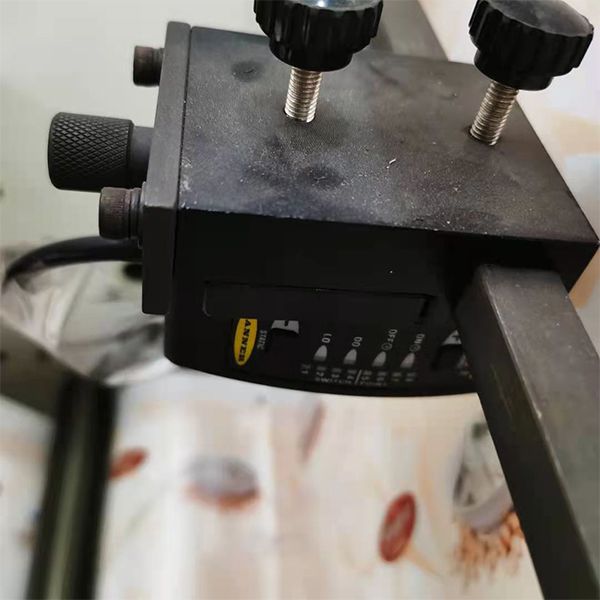

    2. Italy’s color tracking sensor to monitor black marks.
    1. Flatbed Die Cutting Machine, Dragon-330
    2. Sheet feeding controlled by the servo driver, and the sheet length controlled by the PLC system
    1. Flatbed Die Cutting Machine, Dragon-330

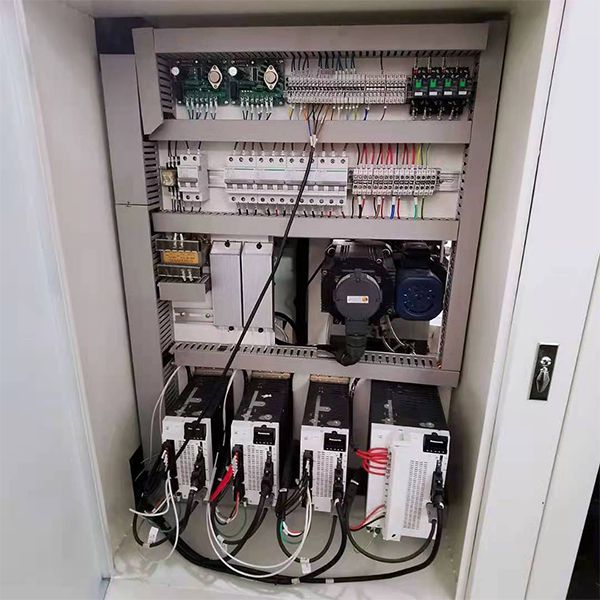

    2. Main electrical parts imported from internationally well-known brands, including Panasonic servo motor & driver, Trio UK PLC.

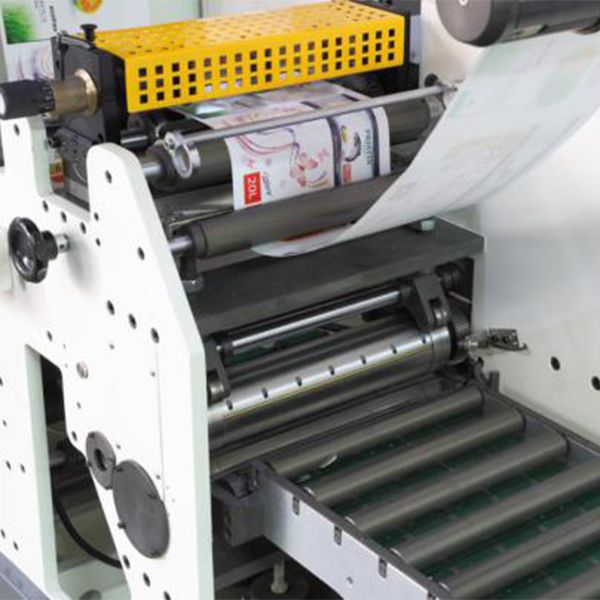

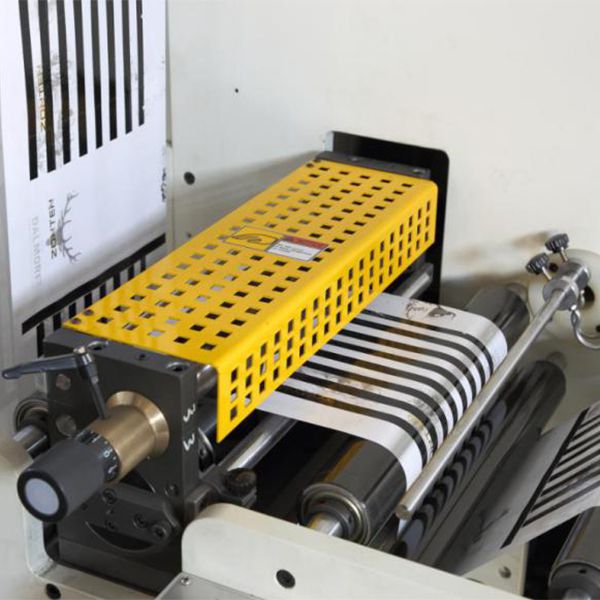

    1. Rotary flexo unit
    2. Rotary flexo unit
      Supports semi rotary & fully rotary operation controlled by the servo driver; 152Z printing cylinder equipped; comes with plates in thickness of 1,14 and1.7mm; used for 0.38 mm adhesive tapes.

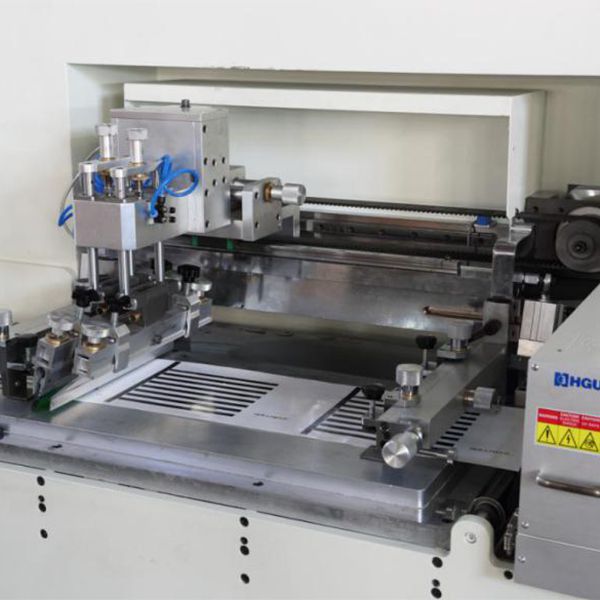

    1. Silk screen printing unit
    2. Silk screen printing unit
