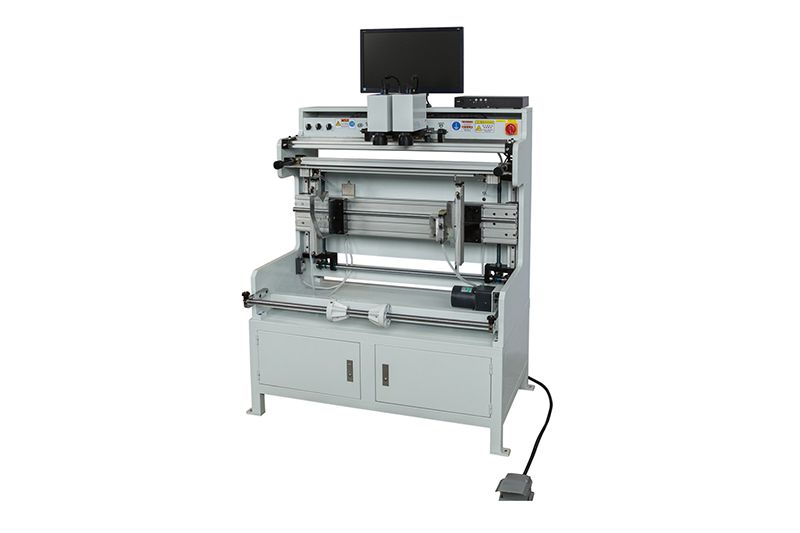

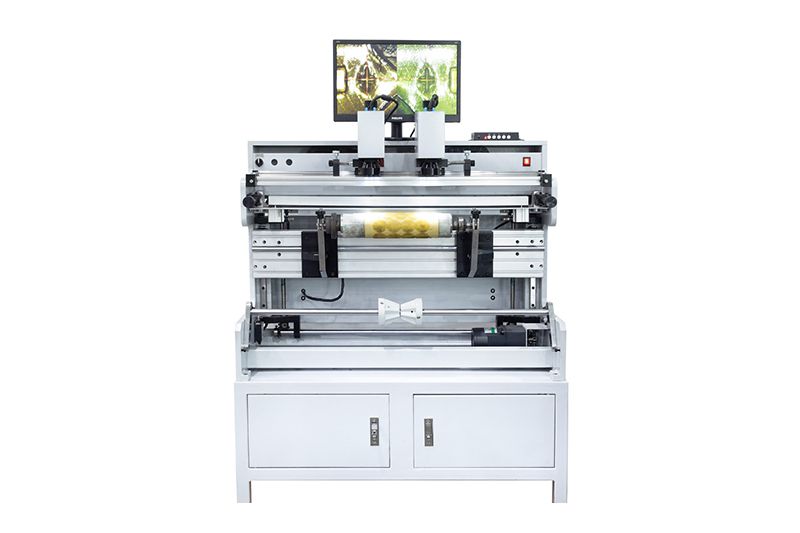

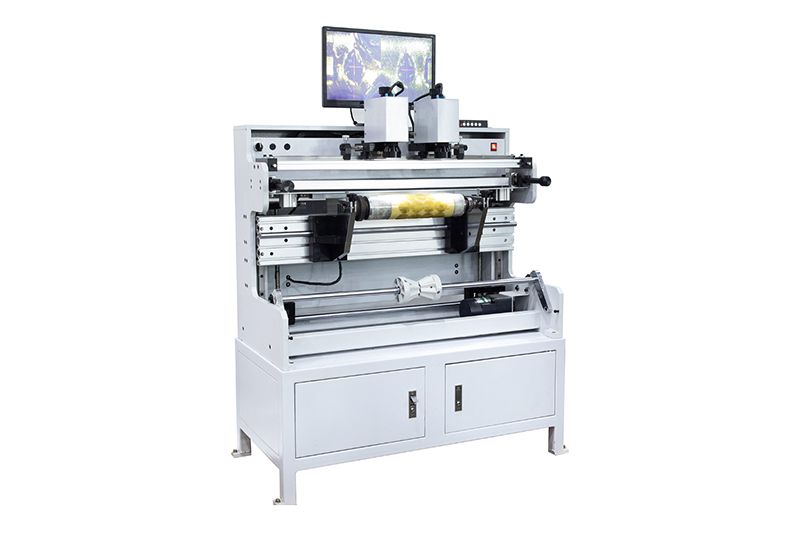

Flexo Plate Mounting Machine, YG-330/450

(Flexo Plate Mounter)

Flexo Plate Mounting Machine, YG-330/450
  • Flexo Plate Mounting Machine, YG-330/450
  • Flexo Plate Mounting Machine, YG-330/450
  • Flexo Plate Mounting Machine, YG-330/450
  • Request a Quote

    Flexo plate mounting machine is a simple flexo plate mounter, which is equipped with two cameras. The user needs to install the plate roller on the flexo plate mounting machine bracket, paste the double-sided tape, and then align the cross line on the plate with the camera to mount the plate.

    The plate mounting machine is an auxiliary machine of flexo printing machine, which is used to accurately mount the flexo plate on the plate cylinder. At present, the plate mounting machine can be applied to petal-type plate rollers, sleeve-type plates, etc.

    Request a Quote

    The flexo plate mounting machine is available with multiple models, enabling it to work on the cylinder width with the maximum width of 330mm, 450mm, 650mm, 1000mm, and 2000mm respectively.

    Features
    • High-strength integral processing wall panel structure has good stability and durability.
    • The 650-line color high-definition camera can reach 70-times amplification ratio, which presents clear images, and possesses high resolution ratio, ensuring increased accuracy of plate mounting.
    • The lifting and lowering of the plate roller mechanism is controlled by a geared motor, which greatly facilitates the operation of the plate mounting operation.
    • The flexo plate moutner adopts centralized control, which is easy to operate and has a high degree of automation.
    • 19-inch high-resolution liquid crystal display delivers clear and beautiful images, effectively relieving the visual fatigue of operators.
    Specifications
    Max. Plate Cylinder Width 330-650mm, 1000mm, 2000mm
    Power Supply AC220V, single phase (or available upon request)
    Overall Dimensions (L*W*H) 1.5*0.6*1.65m
    Machine Weight 330kg
