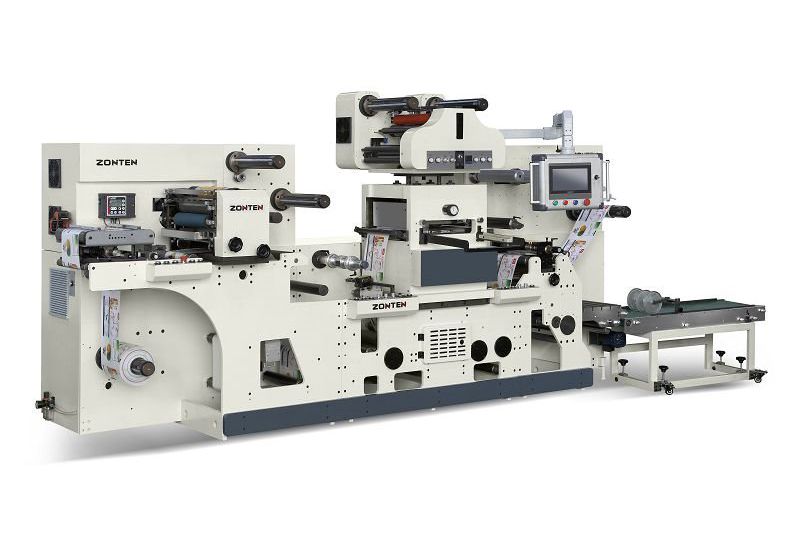

Label Finishing Machine
Label Finishing Machine
Request a Quote

In addition to the standard die-cutting function, the current ZONTEN Dragon -320 label finishing machine can also be equipped with screen printing, flat ironing, round ironing, polishing, and cold ironing.

Due to the shortcomings of digital printing machines, they can only perform printing functions. The demand for combined label finishing machines has increased sharply. As a leader in combined equipment in the printing press field, ZONTEN has successfully developed label finishing machines in response to the requirements of users.

Request a Quote

In addition to the standard die-cutting function, the current ZONTEN Dragon -320 label finishing machine can also be equipped with screen printing, flat ironing, round ironing, polishing, and cold ironing. Modular function setting allows each function to be matched at will. At present, the combined label printing machine is well received by European customers, and several units have been installed in Spain, Italy and other places. If you are interested in label finishing machine, please contact us for more information, thank you!

Specifications
Modelis Dragon -330
Max effective paper width 330MM
Max unwinding dia 700mm
Max rewindinng dia 700mm
Registration Sensor
Die cutting &hot stamp area 320*350mm
Die cutting speed 400rpm/min 120M/minutes
Air supply 0.4-0.6pa
Dimension 5650*1510*1820MM
Weight 8000 kgs

As an automatic label inspecting machine manufacturer and supplier in China, our company also provides PS plate intermittent offset label printing machine, stacked Flexographic printing machine, 6 color Flexographic printing machine with three die cutting station, etc.

Details
    1. Label Finishing Machine

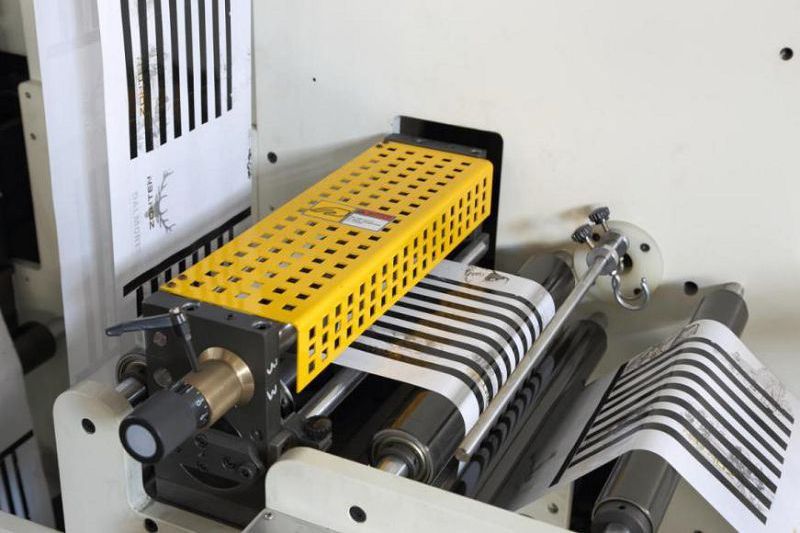

    2. Hot stamping unit: Horizontal/vertical 90°rotating and adjustable stamping. The sliding axis controls the material, and multiple rolls of material can be stamping at the same time
    1. Label Finishing Machine
    2. Servo driver controlled Sheet device , PLC control the sheet length
    1. Label Finishing Machine

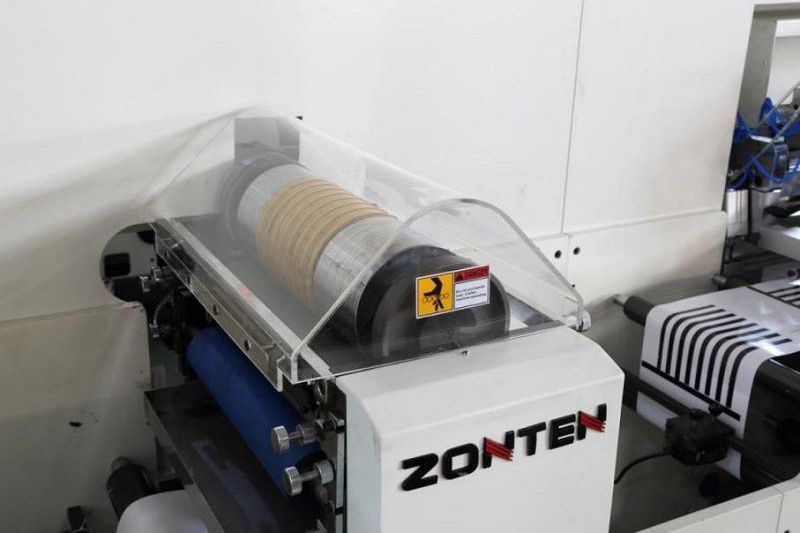

    2. Slitting device with ten round knife euqipped. minmimum slit width 17mm.
    1. Label Finishing Machine

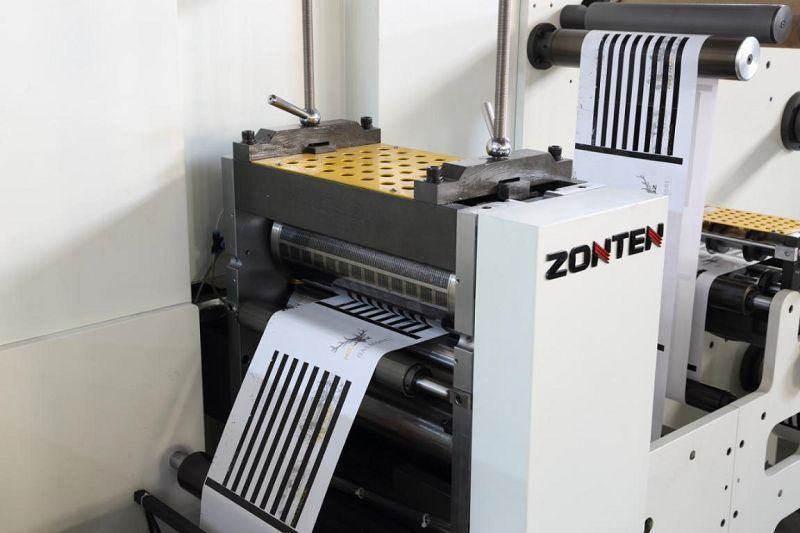

    2. Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running, 152Z printing cylinder equipped, 1.7mm /1,14 plate thickness use, o,38 mm adhesive tapes.
    1. Label Finishing Machine

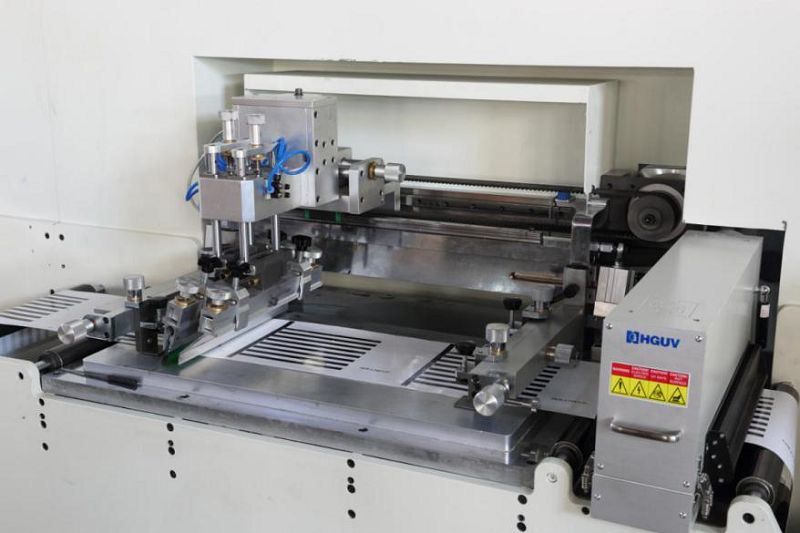

    2. Silk screen unit.
    1. Label Finishing Machine
    2. Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z
    1. Label Finishing Machine

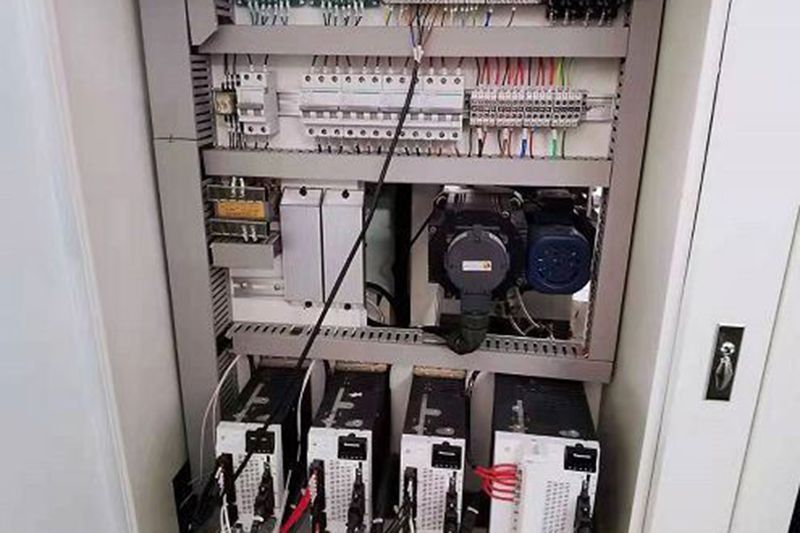

    2. All imported Main electrcia parts including panasonic servo motor & driver, Trio UK PLC and etc.
