Flatbed Screen Printing Machine, SW-320

Flatbed Screen Printing Machine, SW-320
Request a Quote

SW-320 flatbed screen printing machine is widely used for printing on PVC/PET film materials, electronic labels, stickers, etc. Because of its unique ink layer thickness, the silk screen label printing machine significantly promotes the process improvement in the label and package printing industry.

The flatbed screen printing machine currently can realize single-color printing and two-color printing, the printing area is 320*450mm, and the maximum speed can reach 12000 times per minute. There are two drying methods for silk screen label printing machine. Customers can choose IR oven or UV oven according to their products.

The silkscreen label printing machine is often used for white background printing. In order to get better decorative effects on print labels, varnishing can be performed after silk screen printing. The screen printing press has independent feeder and rewinder control at the front and back, traction drive for servo motor, vacuum suction box to realize the smooth transfer of paper, and servo control screen printing. The screen printing machine adopts a modular operation method, which can be connected with die-cutter at the same time

The thickness of the ink layer is mainly controlled by the mesh number of the screen frame, and the corresponding screen frame can be made according to actual print samples. This technology is very mature and customers can find suppliers at any time.

Specifications
Web width 320mm
Screen printing frame size 450*450mm
Max. printing area 300*300mm
Max. speed 4200times/hour
Main motor power 2.5kW
Overall dimensions (LxWxH) 2600x950x1450mm
Machine weight 2200kg
Features
  • Breakaway screen structure
    The screen frame can be separated from the transmission part and pulled out, which is convenient for the adjustment of the print registration and feeding; at the same time, the cleaning of the cylinder and the screen is safer and faster; the automatic photoelectric detection system ensures the reliability of the operation and avoids the breakage of the rack or damage to the main drive.
  • Ultra-precision pneumatic scraper system
    The heavy-duty precision squeegee system uses a variety of advanced technologies such as electronics, pneumatics, hydraulics, and fiber optics. It can preset the knife pressure and control the knife position. Once the squeegee pressure is calibrated, it will remain constant to ensure precise control of the ink layer. Precise control of ink layer thickness ensures perfect and consistent printing.
  • Screen compensation device
    Automatic compensation for printing length shrinkage and extension Automatic compensation for the previous printing process
  • Nylon rack and steel gear
    Synchronous movement of screen and cylinder is driven by nylon rack and steel gear. The nylon rack and steel gear coordination ensures no gap and vibration between them during operation, which guarantees accurate overprint, low abrasion, long service life of the equipment

If you are interested in UV screen printing machine, please contact us!

Details of Flatbed Screen Printing Machine

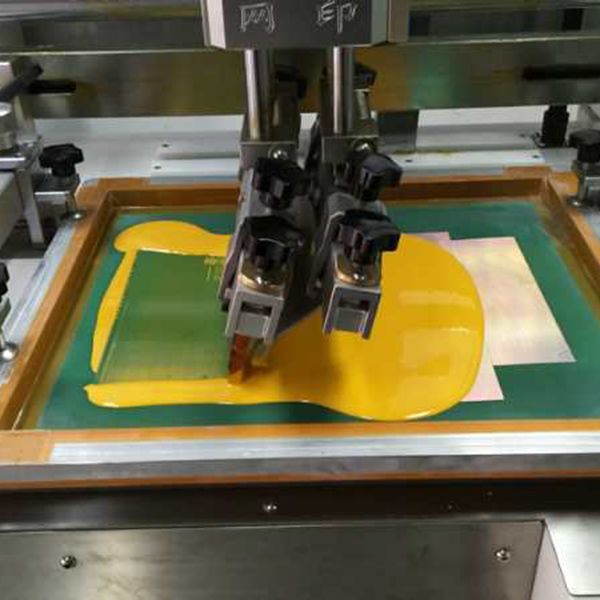

    1. Flatbed silk screen printing unit
    2. Flatbed silk screen printing unit

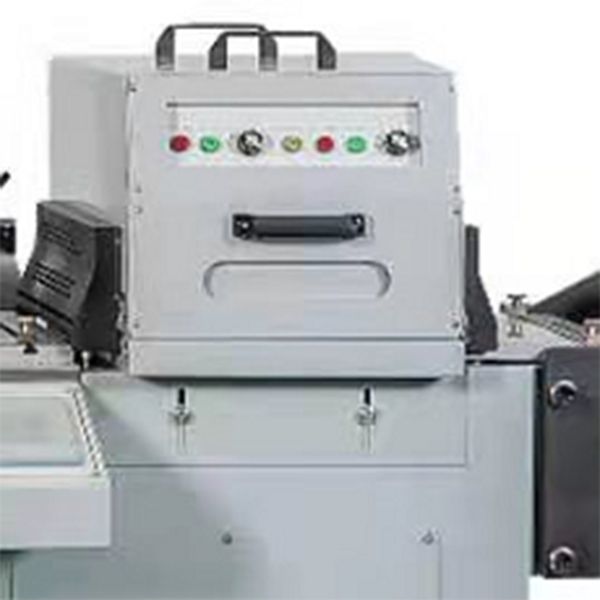

    1. UV dryer for drying and curing ink
    2. UV dryer for drying and curing ink

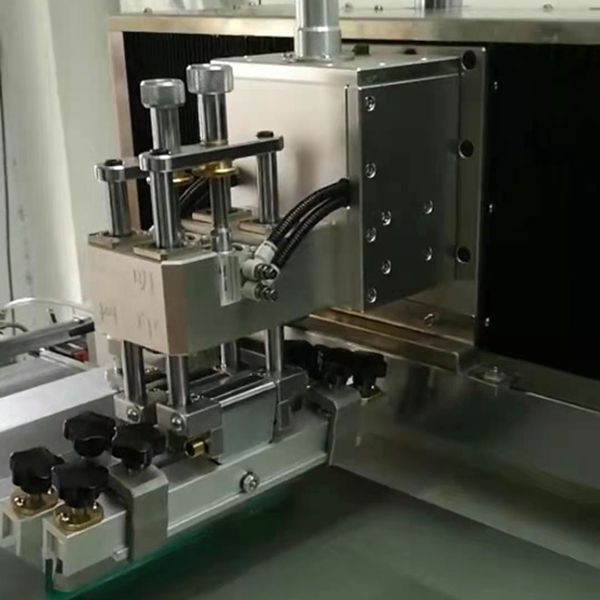

    1. Silk screen printhead controlled by the pneumatic cylinder
    2. Silk screen printhead controlled by the pneumatic cylinder

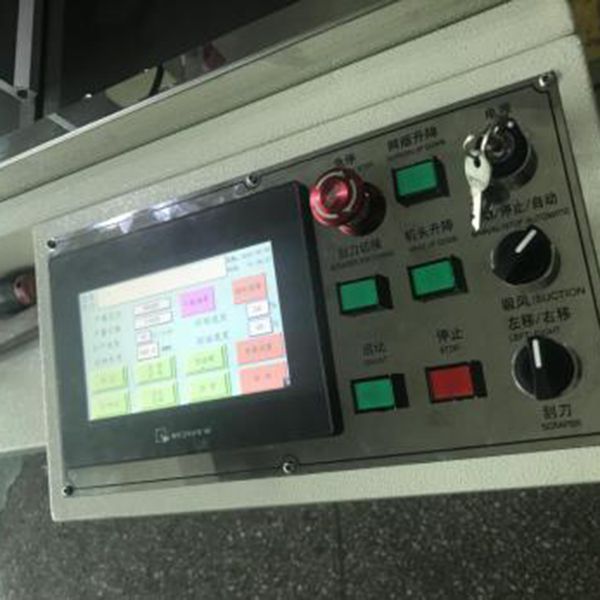

    1. Touch screen
    2. Touch screen

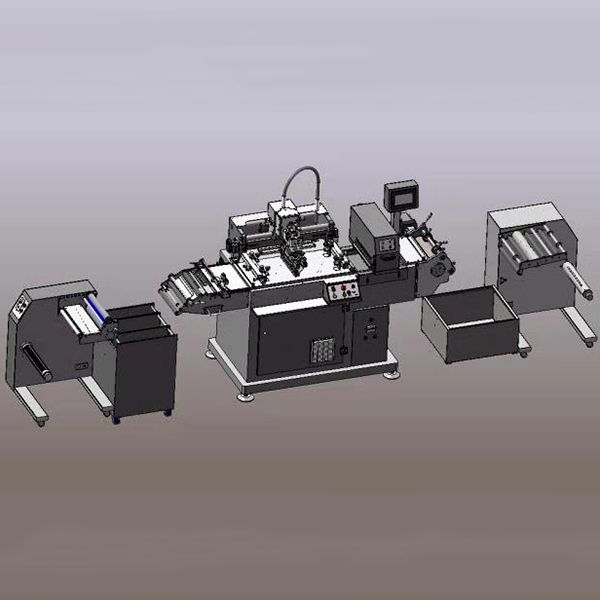

    1. Machine outline
    2. Machine outline

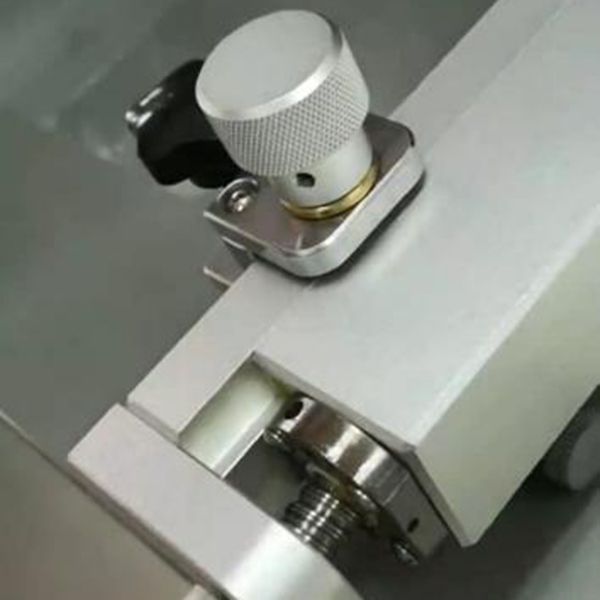

    1. Plate position adjusted by a screw
    2. Plate position adjusted by a screw
    1. Silk screen head, air cylinder control working
    2. Silk screen head, air cylinder control working

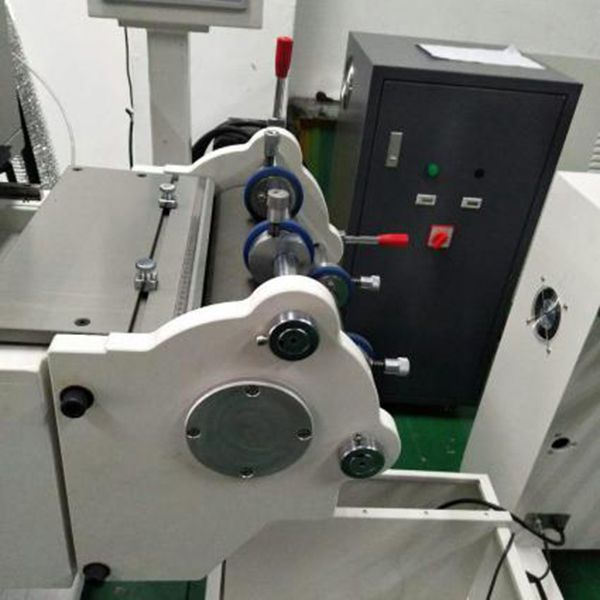

    1. Feeder controlled by a servo driver
    2. Feeder controlled by a servo driver
