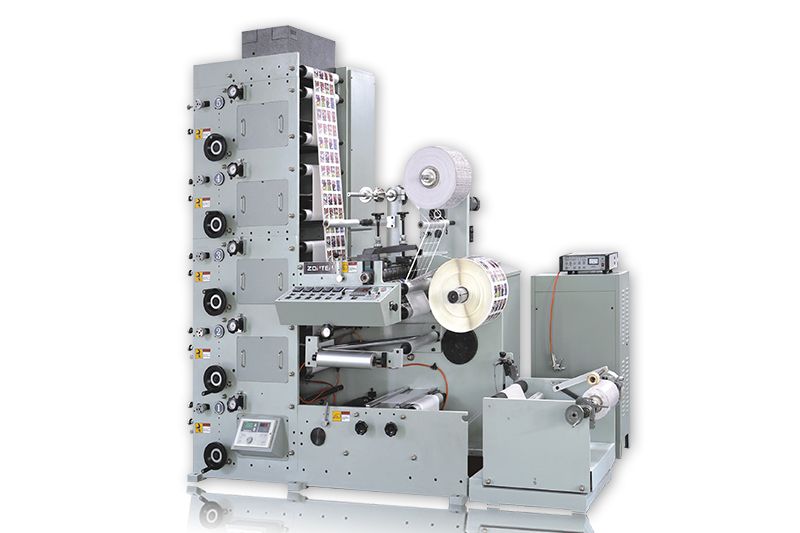

Stack Flexo Printing Machine, RY320

(Stack Flexo Press for Paper Cups)
Stack Flexo Printing Machine, RY320
Request a Quote

RY320 stack flexo printing machine is specially designed for printing paper cups. The paper cup printing machine usually requires 4/4 printing on the front and back, with high color registration accuracy and a width of 330/470 mm.

ZONTEN paper cup printing machine can perform water based ink and UV ink exchange at the same time. In order to provide high color registration accuracy, the BST web guiding system from Germany. What's more, the gear of the printing cylinder is changed to helical gear to get more steady printing quality.

Request a Quote

The flexo printing machine is designed with double slitter rewinder, which gives customers more choices of printing process to meet various requirements of customers. This design makes it ideally suitable for film producers and flexible material converters.

Features
    1. Stack Flexo Printing Machine, RY320

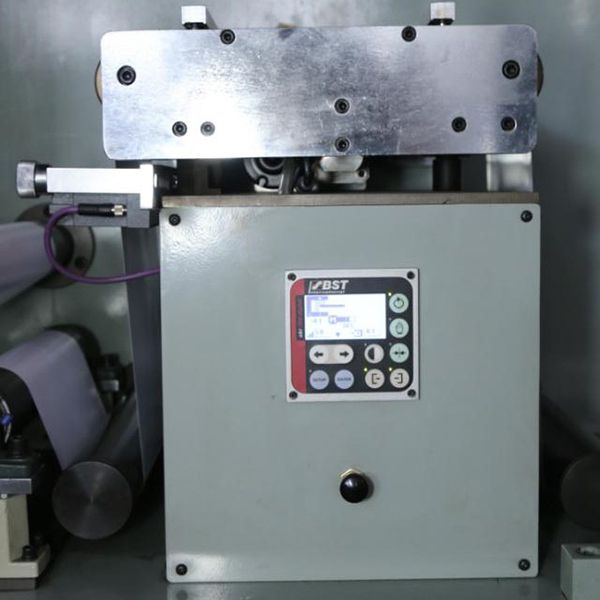

    2. The flexo printing machine combines with BST German brand web guide with ultrasonic edge sensor, which guarantees precise web feed.
    1. Stack Flexo Printing Machine, RY320

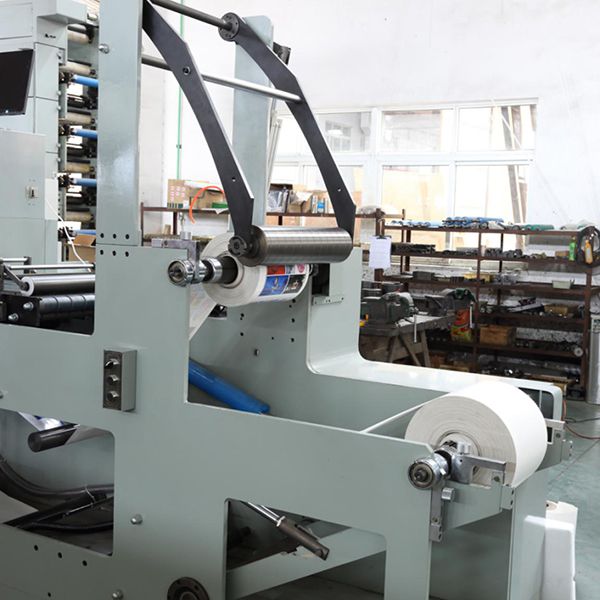

    2. Optional device: Hydraulically controlled rewinder in diameter of 1000mm.
    1. Stack Flexo Printing Machine, RY320

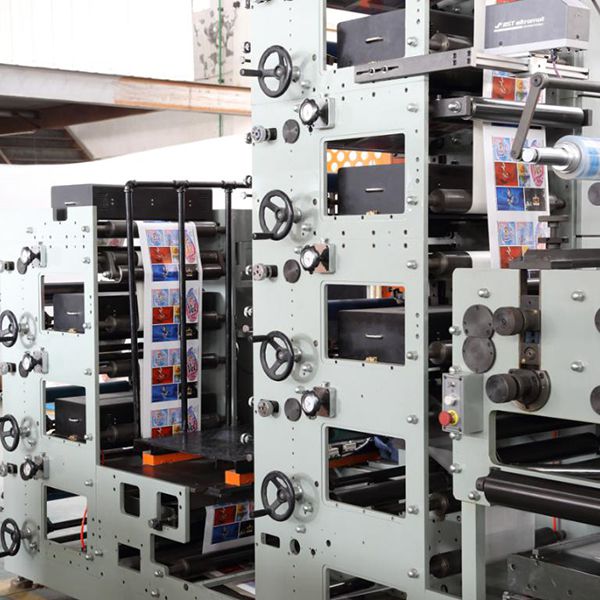

    2. The flexo printer comes with dual slitter rewinder. A web guiding system is equipped between the connection part.
    1. Stack Flexo Printing Machine, RY320

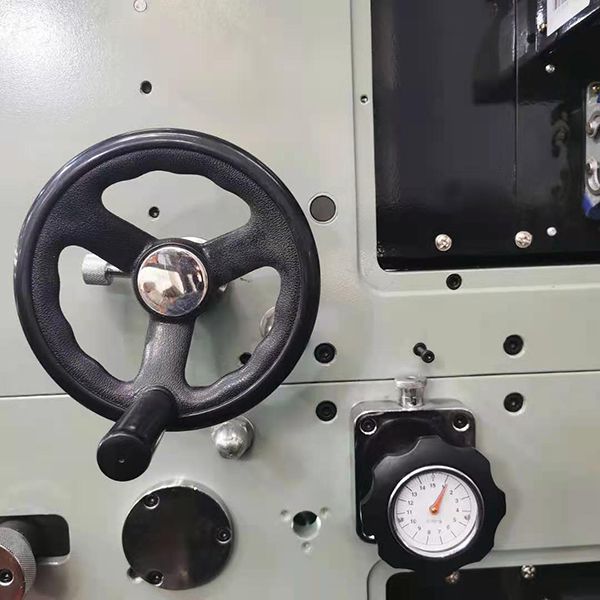

    2. The printing unit can register in 360 degree, and each printing unit can be independently controlled.
    1. Stack Flexo Printing Machine, RY320

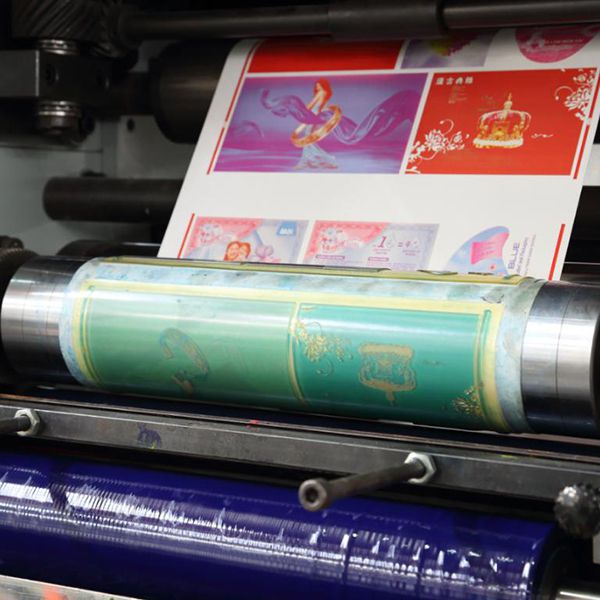

    2. Printing cylinder supports plates in thickness of 1.14 mm and 1.7mm, and can be designed with straight gear or helical gear.
    1. Stack Flexo Printing Machine, RY320

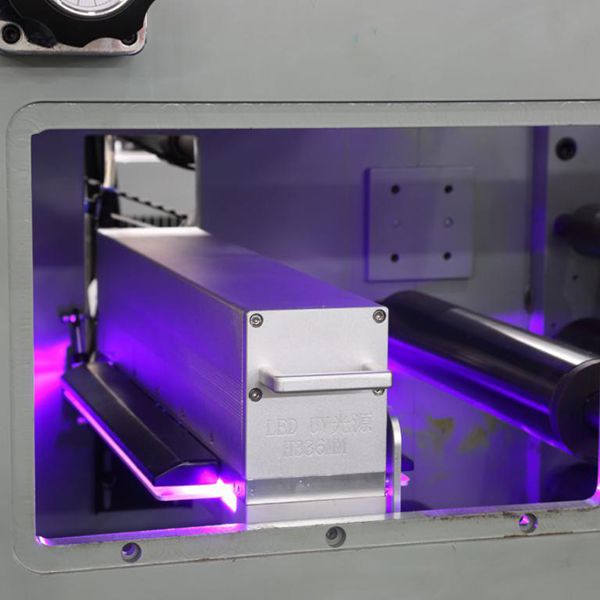

    2. The flexo printing press comes configured with LED UV dryer, UV dryer or IR dryer upon request to meet different printing requirements.
Specifications
Model RY-320
Max. web width 320mm
Max. printing width 310mm
Printing repeat 180～380mm
Color 2-6
Thickness of substrate 0.1～0.3mm
Machine speed 10-80m/min
Max. unwind diameter 600mm
Max. rewind diameter 550mm
Main motor power 2.2kW
Power supply 3-phase, 380V/50hz
Overall dimensions (LxWxH) 3000x1500x3000mm
Machine weight about 2000kg
