Stacked Flexo Printing Machine, RY-1000

Stacked Flexo Printing Machine, RY-1000
  • Stacked Flexo Printing Machine, RY-1000
  • Stacked Flexo Printing Machine, RY-1000
  • Request a Quote

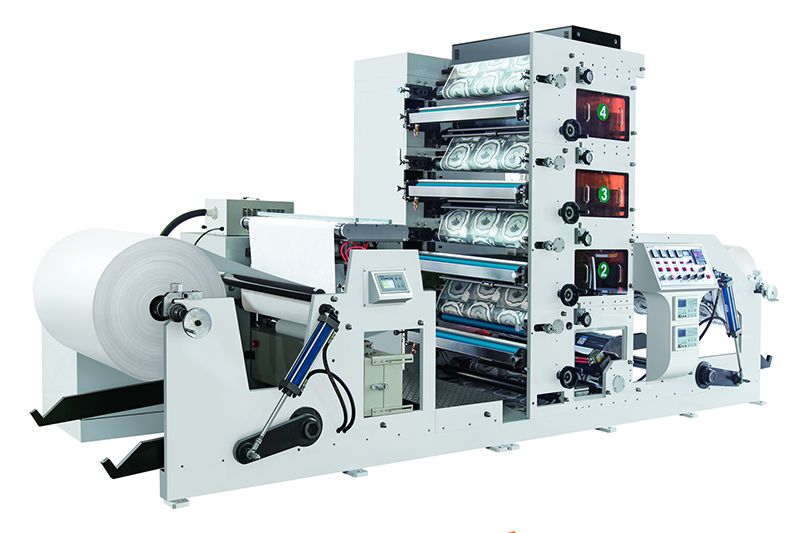

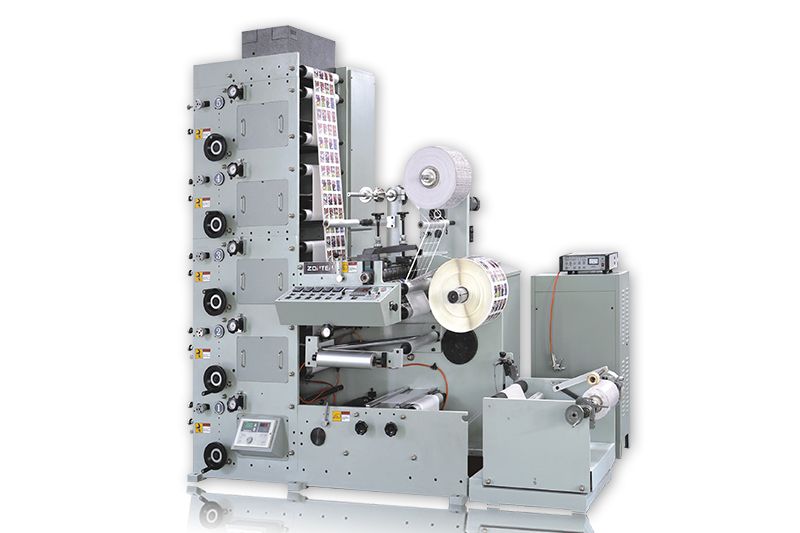

    RY-1000 stack type flexo label printing machine is a wide-format printing machine, which is mainly used for printing on paper bags, paper cups, hamburger boxes and others.

    The flexo label printing machine is designed with an independent hydraulically controlled rewinder in diameter of 1000mm. After web guide and tension control, CMYK 4-color printing is performed. The flexographic printing equipment comes with a die-cutting function, with its speed up to 60m/min.

    If you are interested in stacked flexo label printing machine, please contact us.

    Request a Quote

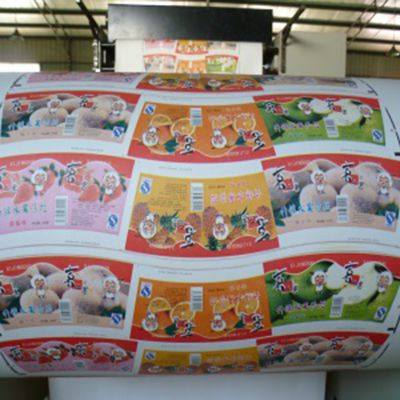

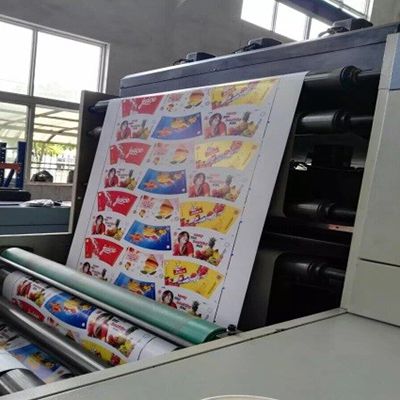

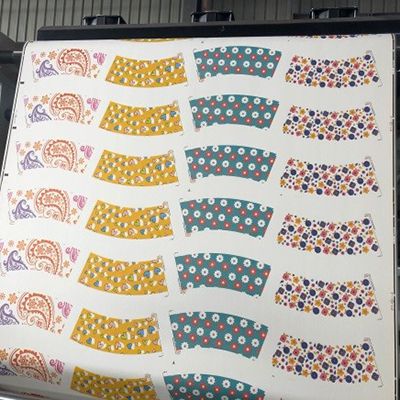

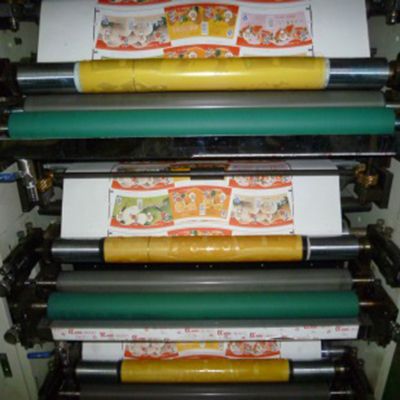

    Printing samples
    • Stacked Flexo Printing Machine, RY-1000
    • Stacked Flexo Printing Machine, RY-1000
    • Stacked Flexo Printing Machine, RY-1000
    • Stacked Flexo Printing Machine, RY-1000
    Specifications
    Model RY-1000
    Max. web width 1000mm
    Max. printing width 1000mm
    Printing repeat 180~380mm
    Color 2-6
    Thickness of substrate 0.1~0.3mm
    Machine speed 10-60m/min
    Max. unwind diameter 1300mm
    Max. rewind diameter 1300mm
    Main motor power 48kW
    Power supply 3-phase, 380V/50hz
    Overall Dimensions (LxWxH) 4800x2250x2250mmm
    Machine weight about 4000kg
