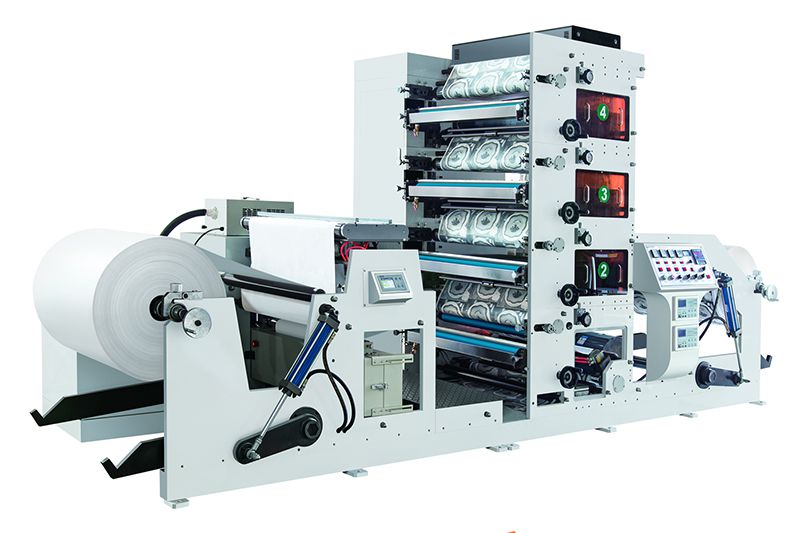

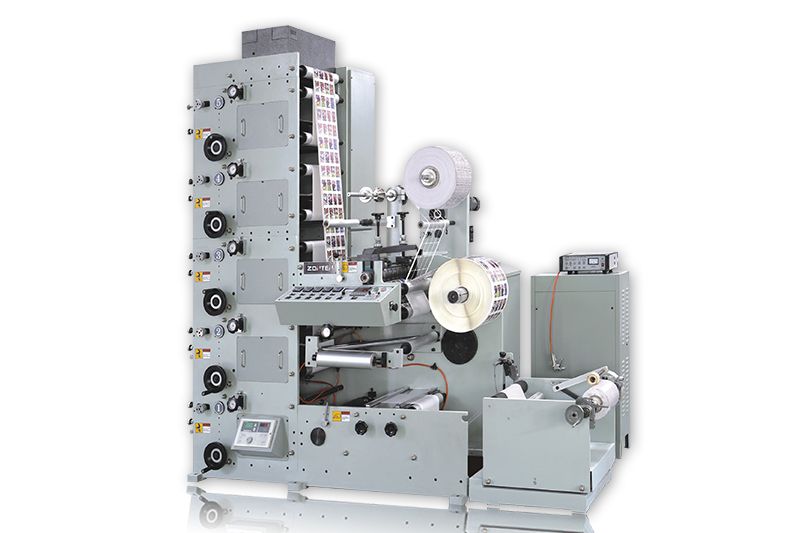

Stack Flexo Printing Machine, RY-470

(Stack Flexo Press for Thermal Labels)

Stack Flexo Printing Machine, RY-470
  • Stack Flexo Printing Machine, RY-470
  • Stack Flexo Printing Machine, RY-470
  • Request a Quote

    RY-470 stack flexo printing machine is designed and constructed to achieve printing on thermal papers. It provides a perfect solution to manufacture thermal labels. This thermal label printing machine comes with web guiding system, constant tension controller, print unit with high registration accuracy, etc.

    Featuring simple operation, long service life, and flexible function choice, we are confident to provide premium flexographic printing machines delivering excellent print quality to customers. The thermal label printing machines was launched to the market in 2000. Till now, it gets enormous customers’ satisfaction in domestic and oversea markets.

    Request a Quote
    Features

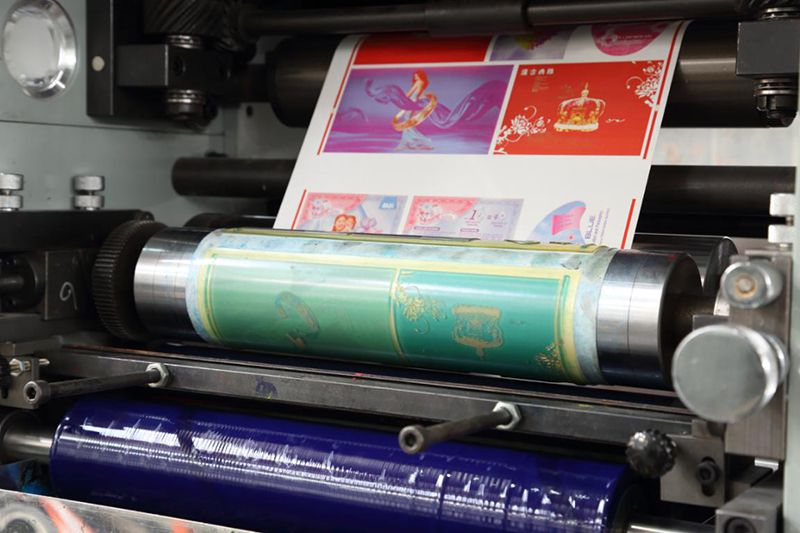

      1. Stack Flexo Printing Machine, RY-470
      2. Printing cylinder supports plates in 1.14mm and 1.7 mm thickness, and can be designed with both straight gear and helical gear.
      1. Stack Flexo Printing Machine, RY-470

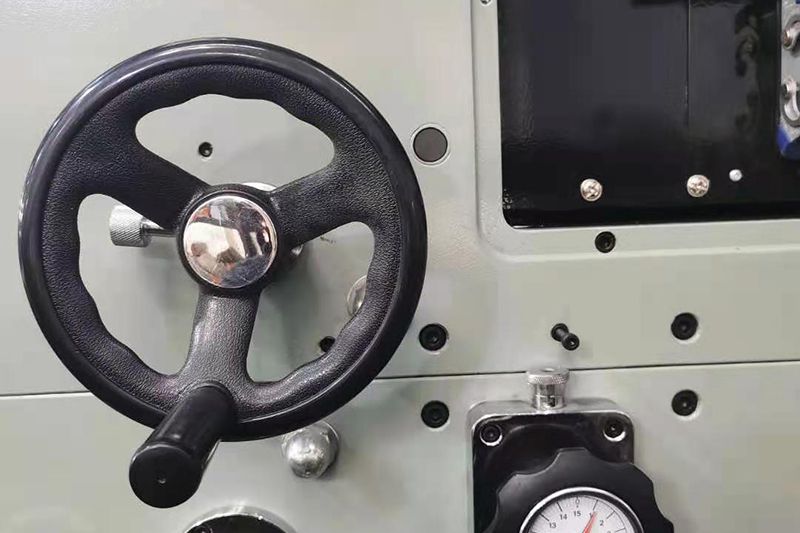

      2. The printing unit can register in 360 degree, and each printing unit can be independently controlled.
      1. Stack Flexo Printing Machine, RY-470

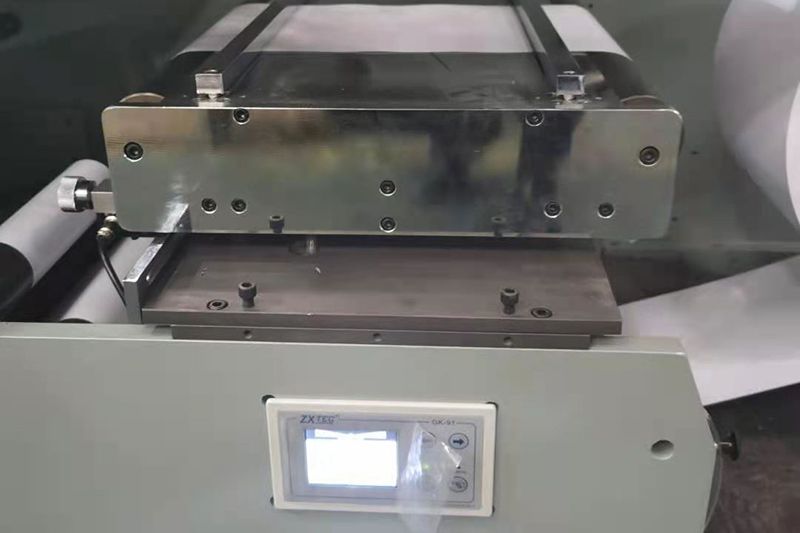

      2. Web guide from a Chinese brand.
      1. Stack Flexo Printing Machine, RY-470

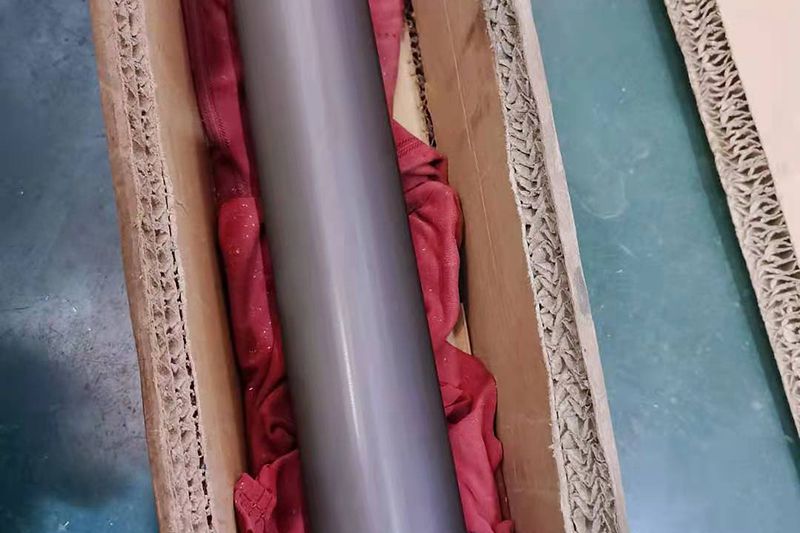

      2. Adopting ceramic anilox roller which offers durability, wear resistance and corrosion resistance ensures higher efficiency on continuous printing.
      1. Stack Flexo Printing Machine, RY-470

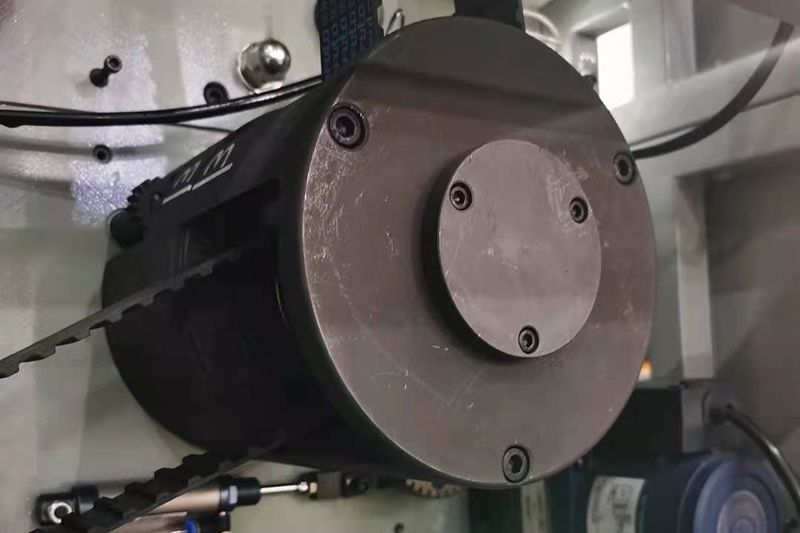

      2. Adopting high-precision planetary gearbox ensures no gear marks are generated during printing.
      1. Stack Flexo Printing Machine, RY-470

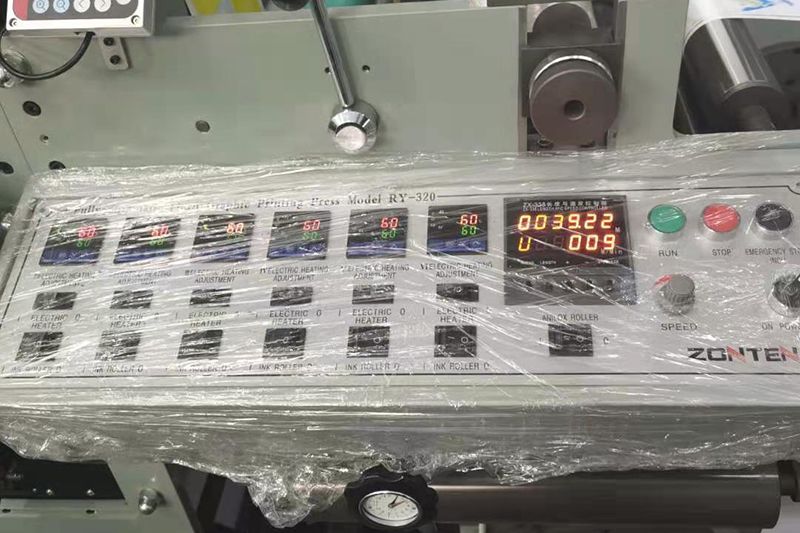

      2. Bottom control panel
      1. Stack Flexo Printing Machine, RY-470

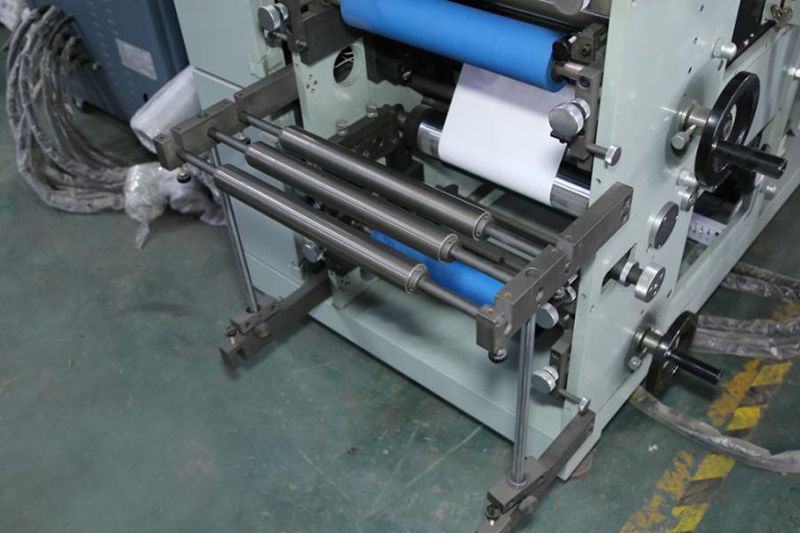

      2. The flexo printing machine includes the option of back printing on glue (Delam- Relam), with maximum 1 color.
    Specifications
    Model RY-470
    Max. web width 450mm
    Max. printing width 440mm
    Printing repeat 180~380mm
    Color 2-6
    Thickness of substrate 0.1~0.3mm
    Machine speed 10-80m/min
    Max. unwind diameter 600mm
    Max. rewind diameter 550mm
    Main motor power 2.2kW
    Power supply 3-phase, 380V/50hz
    Overall dimensions (LxWxH) 3000x1700x3000mm
    Machine weight about 2300kg
