Rotary Offset Printing Machine, Smart-680

(Printing Press for Shrink Sleeve Labels)

Rotary Offset Printing Machine, Smart-680
Request a Quote

SMART-680 shrink sleeve printing machine is a high-end combined film printing machine, which can carry out high-quality printing for various materials such as PVC/PET/BOPP/IML/aluminum foil.

Compared with traditional gravure printing machine, SMART-680 shrink sleeve printing machine has many advantages as follows:

  • The printing quality is more exquisite and the dots are more delicate. Traditional gravure printing machine adopts engraving roller and anilox roller. The highest screen line can only print 150 lines. The standard line of SMART-680 shrink sleeve printing machine is 225 lines, and the maximum line is 300
  • The cost of plate making is cheaper and the cycle is shorter. The traditional gravure printing mechanism is expensive, the cycle is 2 weeks, the shrink sleeve printing machine can be directly output from the CTP machine, and the cost of a plate is 10 yuan
  • Less ink consumption. Because the ink roller conducts ink injection, the ink usage rate of offset printing is even less.
  • The combination process is more abundant. Traditional gravure printing machine can perform printing function, shrink sleeve printing machine can realize combined printing of offset printing, flexo printing, gravure printing, silk screen, cold stamping, etc. It is more suitable for label and packaging industry
Specifications
Machine Speed 150m/min, 4-12color
Max. Print Repeat Length 635mm
Min. Print Repeat Length 469.9mm
Max. Paper Width 420mm
Minimum Paper Width 200mm (paper), 300mm (film)
Max. Print Width 410mm
Substrate Thickness 0.04 -0.35mm
Max. Unwinding Diameter 1000mm / 350kg
Max. Winding Diameter 1000mm / 350Kg
Offset Printing Plate Thickness 0.3mm
Flexographic Printing Plate Thickness 1.14mm
Blanket Thickness 1.95mm
Servo Motor Power 16.2kW
UV Power 6kW*6
Power Supply 3p 380V±10%
Dimensions 16000×2400×2280mm / 7 color
Machine Net Weight Offset /flexo 2270Kg
Weight (others) Unwinder: 1400kg, die cutter & waste collection: 1350kg, rewinder: 920kg
Details
    1. Rotary Offset Printing Machine, Smart-680

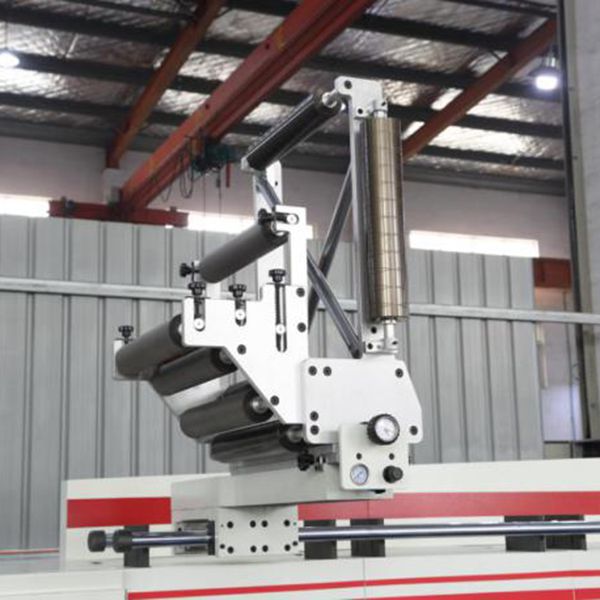

    2. Moveable turn bar unit supports back side printing
    1. Rotary Offset Printing Machine, Smart-680

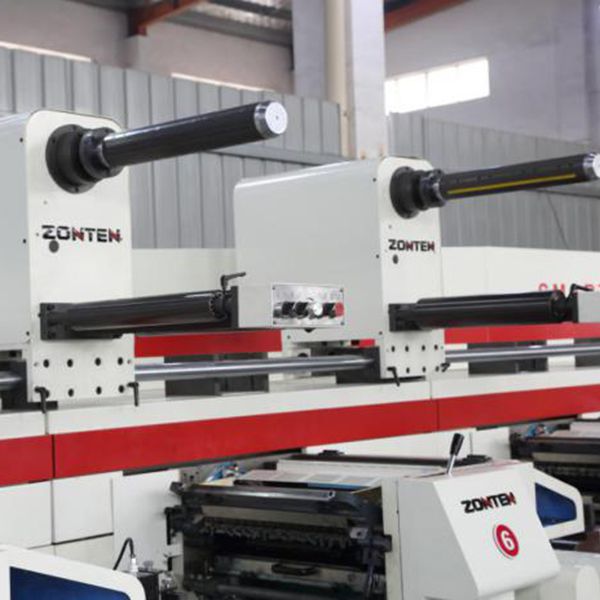

    2. According to the different requirements of labels, cold foil unit can move to any position to complete the job.
    1. Rotary Offset Printing Machine, Smart-680

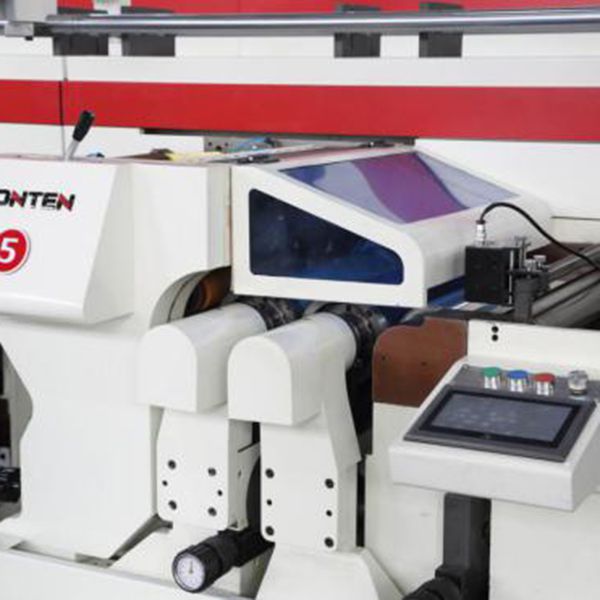

    2. The offset printing unit features a double route inking system with 21 rollers inside. This offset unit is controlled by 9 separated servo drivers, and comes with a B&R industrial automation system.
    1. Rotary Offset Printing Machine, Smart-680

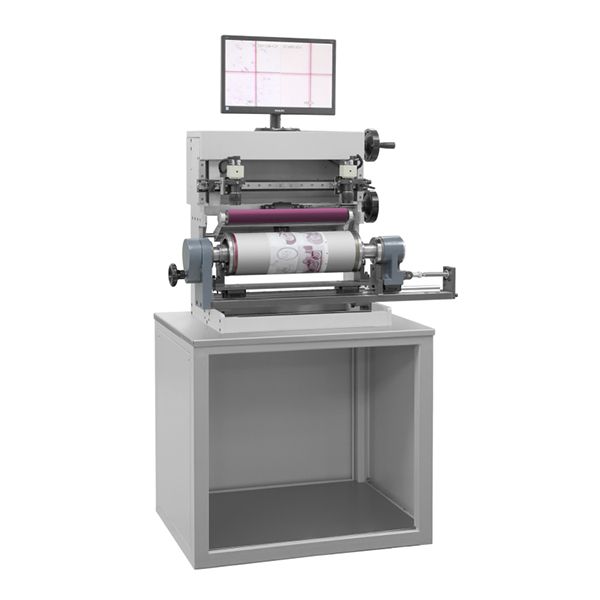

    2. Flexo plate mounting machine and offset plate bending machine are provided for free when customer buys the offset printing machine.
    1. Rotary Offset Printing Machine, Smart-680

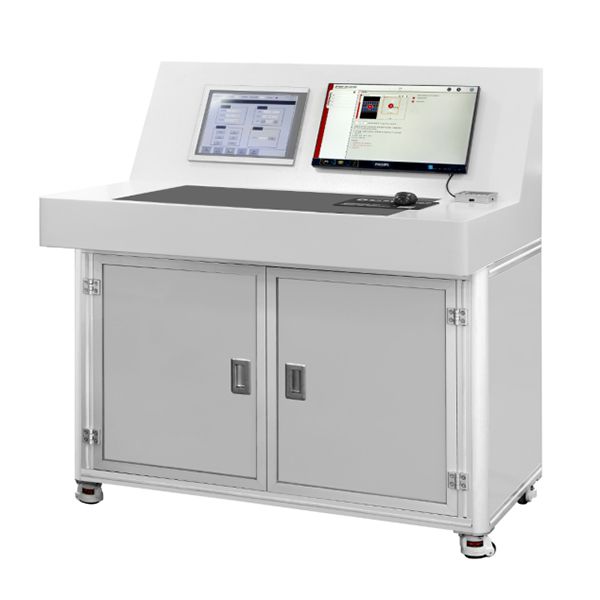

    2. Centralized control with touch screen
      The working parameters can be set and adjusted with the touch screen. The parameters can be stored and memorized, which can be recalled for using anytime. In addition, the process parameters are displayed on the screen to help monitor the whole printing operation in a convenient manner.

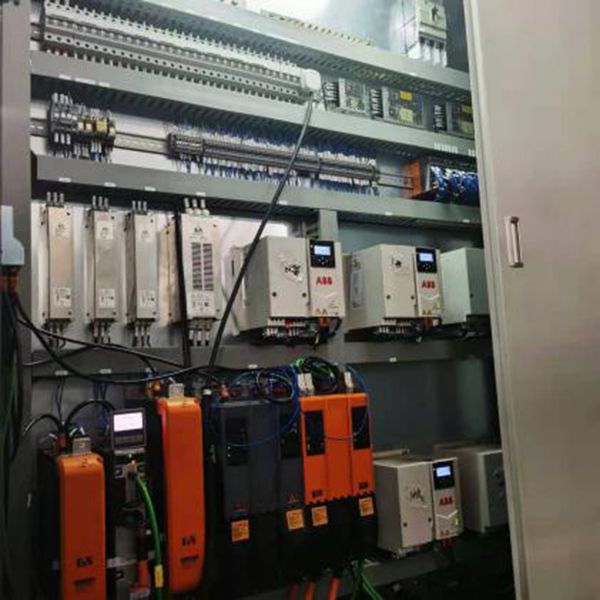

    1. Electrical box in compliance with CE certification
    2. Electrical box in compliance with CE certification
