Fully Automatic Label Inspection Machine, ZTJB-320

Home » Products » Label Inspection Machine » Fully Automatic Label Inspection Machine, ZTJB-320

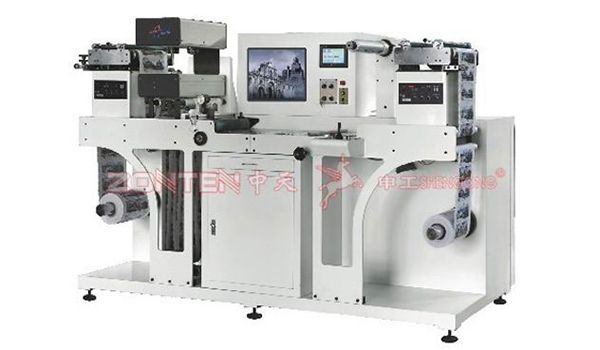

Fully Automatic Label Inspection Machine, ZTJB-320

Adopting the imported 4K color line scanning CCD camera, the ZTJB-320 fully automatic label inspection machine has a maximum detection accuracy of 0.08mm2 and the maximum inspection resolution reaches 0.05mm. It has a unique design. The host system can cooperate with two to three rewinding platforms for testing, so the testing efficiency has been greatly improved.

In addition to common printed labels, this equipment can also detect defects of some special processes, such as laminating, UV varnishing, foil stamping, etc. It will stop after detecting a defect, which helps users determine the defect position and eliminate it. This fully automatic label inspection machine can conduct detection for materials with the width of 330mm and the maximum detection speed reaches 200m/min. With relatively high working efficiency, it is a good choice for customers.

Specifications
Max. Width of the Material 330mm
Max. Machine Speed 200m/min
Max. Diameter of Unwinding 800mm
Max. Diameter of Winding 800mm
Host Power 7KW
Host Power Supply 380V/AC Three-phase, 50Hz
Overall Dimensions 2600×1100×1700mm
Weight 1500kg

Our company is an experienced fully automatic label inspection machine manufacturer in China. We offer a variety of products, including resin printing plate exposure machine, 8-color intermittent letterpress high speed label printing machine, offset printing machine, and more.
